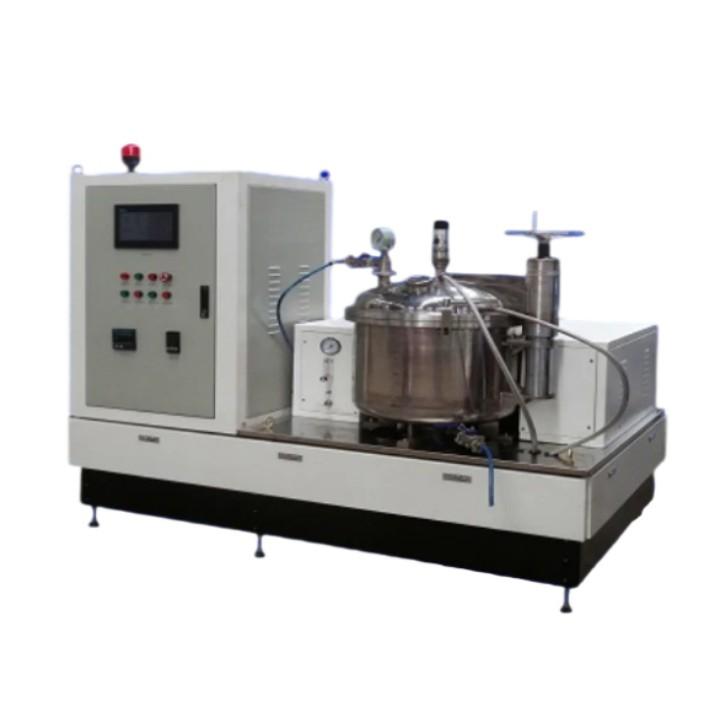

Lab High Temperature Low Vacuum Microwave Multi Atmosphere Furnace

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-V4500
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab High Temperature Low Vacuum Microwave Multi Atmosphere Furnace






Description

HAMiLab-Vseries Microwave multi-atmosphere Furnace is the 3rd generation of SYNOTHERM standardized high temperature microwave multi-function laboratory system. It applies to all kinds of materials’ sintering, burning, firing, compounding, calcining, melting other heat treatment in the multi-atmosphere (air oxygen, nitrogen, argon, fixed gas weak reductive atmosphere, etc.). HAMiLab-V is composed of a double-layer, water-cooled, vacuum sealed, stainless steel heating chamber that is attached to vacuum gas-infiltration systems that provides a highly controlled environment for processing samples.  Metals, technical ceramics, glasses, PM parts, virtually any system that is studied in a laboratory can be processed in the HAMiLab-V to yield end-products of the finest quality.


Features

- Adopt the industry-grade microwave source to ensure the furnace’s long time continuous steady running.

-Microwave output power adjustable freely, no gear limitation, to achieve accurate temperature control curve;

-Set with two gas passages (input output), atmosphere can be controlled accurately

-Adopt imported high-precision IR thermometer to measure directly the temperature of the sample.

-Be equipped with embedded micro-computer control system, offer manually operation, automatically operation, constant temperature operation three modes, shifted freely.

-All kinds of original crucibles insulation structures available for choice, no pollution to materials.

-It can deal with different kinds of materials, with good commonality;

-Set with the corrosion-resistant exhaust passage, exhaust rapidly the gas produced in the heating process.

-Touch screen display operation, equipped with windows operation system, able to be connected with PC; Capable of set store many temperature control curves. Store automatically running records, compatible with printer; real time display the temperature control curve, to achieve the dynamic monitor of the heating process;

- Safe reliable microwave shield design, multi-ply protection from microwave leakage.



Application field

- Powered particles materials’ calcination systhesis;

- Finished products’ sintering;

- Calcining, firing

- MOX carbon thermal reduction

- Metal melting heating treatment

- Carbonization pyrogenation

- Organic cracking


Technical specification

Specification

Model

HAMiLab-V3600

HAMiLab-V4500

Output Power

0.2– 2.85kw variable

0.3– 3.9kw variable

Rated power

6kw

8kw

Microwave Frequency

2450 ± 25MHz

Overall Dimensions (mm)

800 × 2200 × 1800 (W×L×H)

Cavity Dimensions (mm)

Φ500 × 560 (Dia. × H)

Effective Heating Zone (mm)

100x100x60, Φ110x100

Maximum Temperature

1600

Temperature Measurement

Raytek IR pyrometer, 450 - 2250

Control System

PLC (18 sections of temperature control), embedded system connected to laptop via USB, with data storage printing functions.

Control Panel Display

8” touch-pad LCD or laptop

Temperature Control Precision

±0.1%

Power Control Precision

< ± 2%

Vacuum Limit

< 100 Pa

Atmosphere Control

2 channels (optional)

Process Atmosphere

Air, oxygen, nitrogen, argon weak reductive atmosphere, etc.

Microwave Leakage

< 1mW/cm2 (Safety standard < 5mW/cm2)

Cooling

Water

Site area

2m2
