Lab High Temperature Dry Oven Electric Convection Drying Chamber
Introduction
The electric drying oven is suitable for drying, baking, wax melting and heat treatment in the laboratories of industrial and mining enterprises and medical and health institutions of scientific research institutes.
Main Features
1. The shell of the oven is made of high-quality cold plate, and the surface is treated by spraying process.
2. 304 mirror stainless steel is selected for manufacturing.
3. The intelligent liquid crystal temperature control instrument has the functions of timing, over temperature alarm indication, temperature deviation correction, temperature control self-tuning, fan automatic speed regulation, door control, etc. (the door opens automatically to cut off the heating, effectively preventing the machine from overheating).
4. Double layer toughened glass observation window is thickened to observe the change of items in the box.
5. New synthetic silicone sealant strip is adopted, with beautiful appearance, long-term high-temperature operation and longer service life.
6. Over temperature protector, timer, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions can be installed.
7. The equipment is equipped with fan speed control switch, the user can adjust the wind speed or automatic wind speed according to the needs.
8. Accuracy: high precision microcomputer LCD temperature controller, accurate and reliable temperature control.
9. Fast: fast heating, forced convection, dry and hot air directly through the heated objects, drying, disinfection time significantly shortened.
10. Safety: if the temperature exceeds the limit, it will be automatically interrupted to ensure the safety of personnel and instruments.
Tips: the temperature deviation in the working room is large after the fan is shut down, so the fan should not be shut down without special circumstances.
The electric drying oven is suitable for drying, baking, wax melting and heat treatment in the laboratories of industrial and mining enterprises and medical and health institutions of scientific research institutes.
Main Features
1. The shell of the oven is made of high-quality cold plate, and the surface is treated by spraying process.
2. 304 mirror stainless steel is selected for manufacturing.
3. The intelligent liquid crystal temperature control instrument has the functions of timing, over temperature alarm indication, temperature deviation correction, temperature control self-tuning, fan automatic speed regulation, door control, etc. (the door opens automatically to cut off the heating, effectively preventing the machine from overheating).
4. Double layer toughened glass observation window is thickened to observe the change of items in the box.
5. New synthetic silicone sealant strip is adopted, with beautiful appearance, long-term high-temperature operation and longer service life.
6. Over temperature protector, timer, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions can be installed.
7. The equipment is equipped with fan speed control switch, the user can adjust the wind speed or automatic wind speed according to the needs.
8. Accuracy: high precision microcomputer LCD temperature controller, accurate and reliable temperature control.
9. Fast: fast heating, forced convection, dry and hot air directly through the heated objects, drying, disinfection time significantly shortened.
10. Safety: if the temperature exceeds the limit, it will be automatically interrupted to ensure the safety of personnel and instruments.
Tips: the temperature deviation in the working room is large after the fan is shut down, so the fan should not be shut down without special circumstances.
Technical Parameters
|
Model number
parameter
|
101-00BE
|
101-0BE
|
101-1BE
|
101-2BE
|
101-3BE
|
101-3BEII
|
101-4BE
|
|
Volume
|
20L
|
45L
|
72L
|
125L
|
210L
|
245L
|
400L
|
|
Power supply
|
220V 50HZ
|
||||||
|
Temperature range
|
RT+10-300℃
|
||||||
|
Temperature resolution
|
0.1℃
|
||||||
|
Temperature fluctuation
|
±1℃
|
||||||
|
Power
|
600W
|
1000W
|
1500W
|
2000W
|
3000W
|
3000W
|
4500W
|
|
Working chamber dimensions
(D*W*H, mm)
|
260×280×280
|
350×350×350
|
350×450×450
|
450×550×550
|
500×600×700
|
500×700×700
|
690×630×910
|
|
Dimensions
(D*W*H, mm)
|
450×540×410
|
520×660×530
|
520×760×630
|
620×860×730
|
670×910×880
|
670×1010×880
|
855×930×1085
|
|
Packing Dimensions
(D*W*H, mm)
|
500×590×485
|
570×710×600
|
565×805×705
|
675×900×800
|
720×970×950
|
720×1050×950
|
950×1010×1240
|
|
N.W/G.W (KG)
|
28/33
|
35/41
|
45/51
|
63/73
|
77/92
|
80/96
|
118/167
|

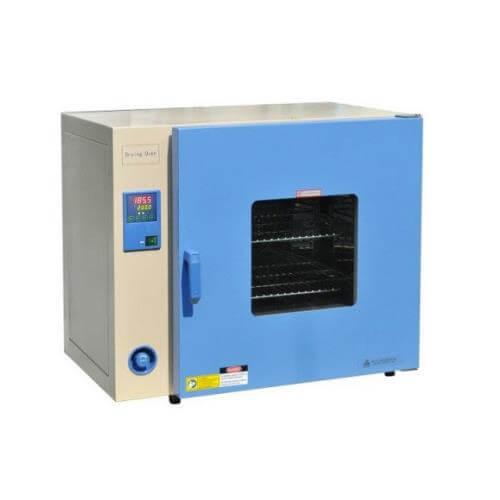

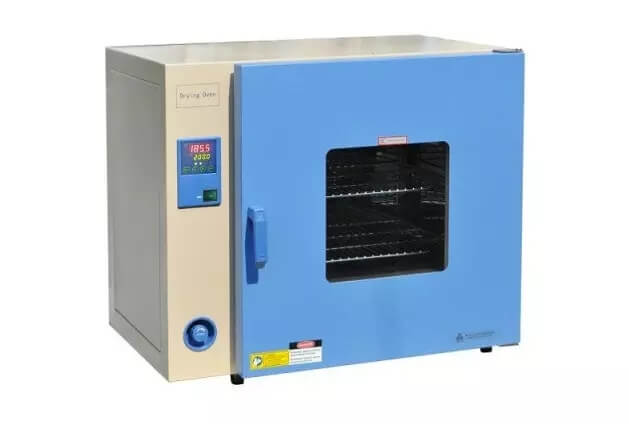

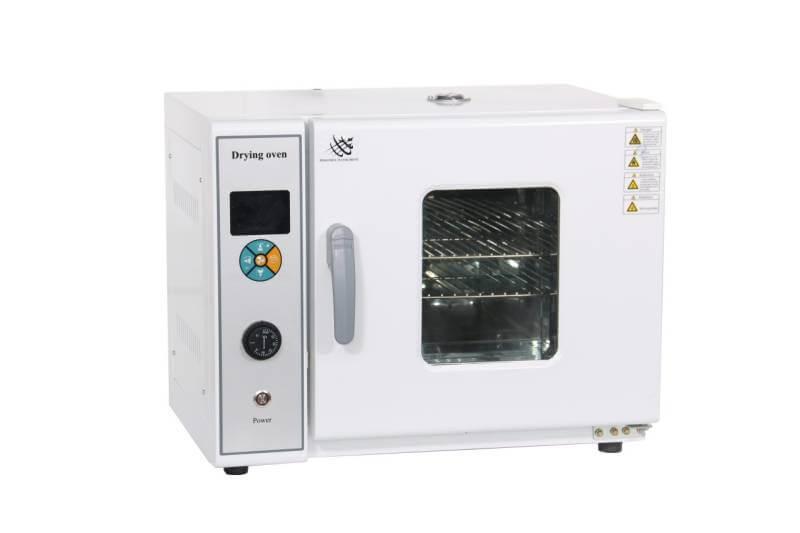

Picture for Reference
