Lab Battery 50L 200C Vacuum Dry Oven with Digital Temperature Controller

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-50L-200C
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Battery 50L 200C Vacuum Dry Oven with Digital Temperature Controller



Features

1.      Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

2.      52 L Middle size vacuum chamber.

3.      3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.

4.      Silicone door gasket and positive latch door maintain seal at all vacuum levels.

5.      Exclusive polycarbonate safety shield protects door glass.

6.      Vacuum fittings require .25" (6.35 mm) I.D. tubing.

7.      Easy-to-clean #304 stainless steel chamber interior.

8.      Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.

9.      Two removable stacking aluminum shelves included.

10.   CE certificated

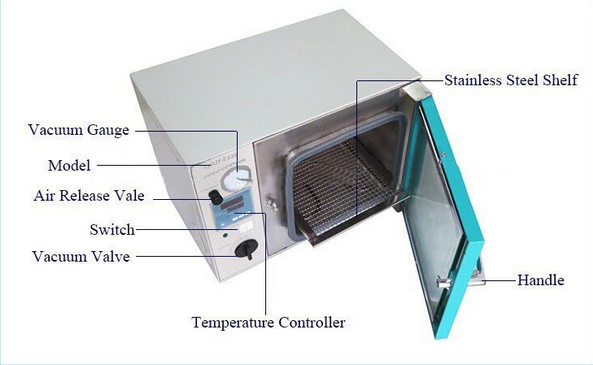

Chamber and Door

1. The chamber is structured with stainless steel and welded to bracing pieces.
2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 11", 25 Liter)
3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield.
5. Two stainless steel shelves are included to facilitate processing efficiency.

Vacuum Pump
(optional)

Ultimate Vacuum Level: 1000 millitorrs.

Working Voltage

AC 110 - 240 V 50/60 Hz

Input Power

500W

Working Temperature

RT+10 ~ 200°C for the continuous use

Temperature Controller

1. Single point temperature setting
2. Built-in over-temperature protection
3. PID precise temperature control
4. Temperature control accuracy: +/-0.1°C
5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x6" area only

Fittings

This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump.

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Attention

1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
2. Please do not place the sample on the chamber bottom directly.

50L Vacuum Oven


50L Vacuum Oven
