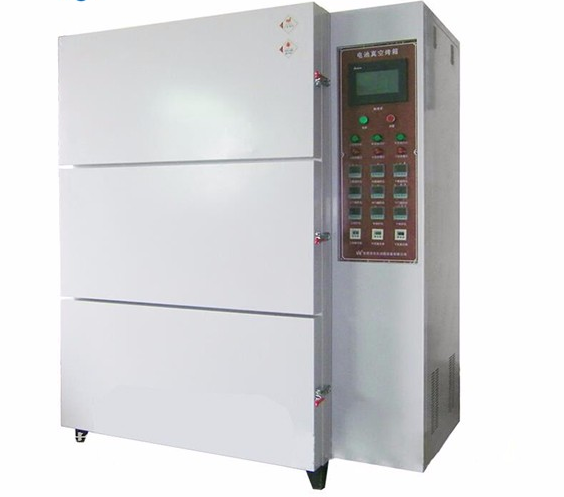

Lab Floor Stand 200C Larger Capacity 430L Vacuum Drying Oven

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-BE-JK-03
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

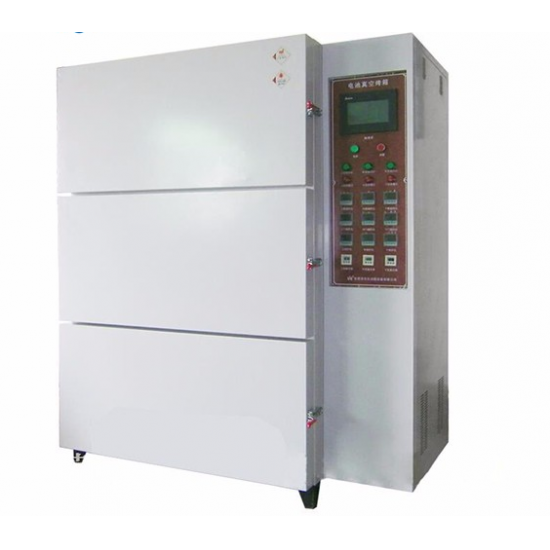

Lab Floor Stand 200C Larger Capacity 430L Vacuum Drying Oven




ADVANCED FEATURES:


1. Tri-level individual shelf heating modules provide ideal temperature uniformity, heat-up efficiency, and spacing for vacuum drying, degassing and bake-out applications.

2. PLC control enables automatic cycling conditions such as vacuuming, backfill with an inert gas, heating to the set temp., dwell, timing and pressure control.

3. Local temperature measuring for each heated shelf. The actual temperature of each shelf can be seen separately on the temperature controller.



SPECIFICATIONS:


Structure

1.       Total capacity: 430 liters (143 liters per level)

2.       Inner Chamber size: W300mm x D800mm x H600mm per level

3.       A good vacuum seal is achieved by silicone door gasket and positive latch door

4.       High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°C during the work

5.       Interior material: Stainless Steel 304 (3mm thick)

6.       Exterior material: Cold rolled steel plate (2mm thick)

Working Voltage

  Three Phase AC 380V

Power Consumption

  13.5KW

Heating Rates

  RT-80°C, less than 20 minutes (unloaded)

Thermocouple

  K type

Working Temperature

  RT ~200°C

Temperature Controller

1.       PID precise temperature controls with built-in over-temperature protection

2.       Temperature uniformity: +/-2°C @ 85°C

3.       Temperature Stability: +/-1°C of the setpoint

Vacuum Pump (optional)

  Ultimate Vacuum Level: 750 millitorrs.

Gas Inlet/Vacuum Port

1.       Features 1/4" tube fitting for chamber purging with inert gas

2.       Vacuum Port: KF-25

Compliance

  CE Certified

Warranty

  One years limited warranty with lifetime technical support

Dimensions

  Oven: 1850 x 1420 x 890 mm (L x W x H)

Net Weight

  700kg

Application Notes

  Such an oven is an excellent tool for the larger volume of battery electrode drying.
