Lab High Temperature 1700C High Vacuum Furnace with Programmable Temperature Controller

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-1700CFurnace
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

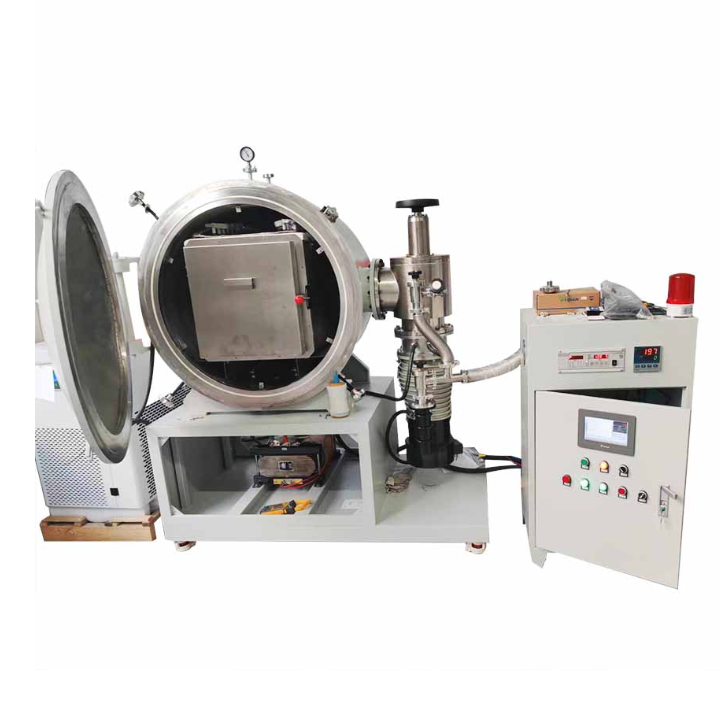

Lab High Temperature 1700C High Vacuum Furnace with Programmable Temperature Controller



The equipment introduction: The high vacuum furnace is widely used for heating treatment of metal materials in low vacuum, recursive, protective atmosphere, also can used for heating treatment of special materials,such as carbonization process of carbon products. The furnace chamber is ceramic fiber with excellent thermal insulation; Vacuum reservoir with water cooling system.



 Technical Parameters













Max.temperature

1700C

Working temperature

0-1600C

Chamber size

D300*W200*H200mm(12L)

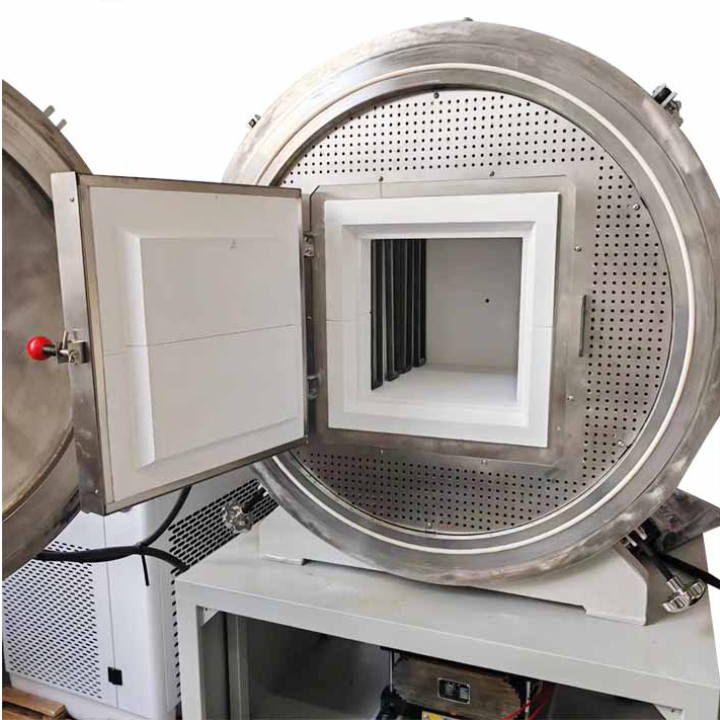

Furnace chamber  material

Chamber material is light alumina ceramic fiber,module, reasonable design, good heat preservation performance, saving energy. (Fireproof layer adopts vacuum forming ceramic fiber insulation layer adopts ceramic fiber )

Furnace shell

Internal stainless steel, external high strength carbon steel, external electrostatic spray, beautiful and generous

Surface temperature

ouble layer water cooling structure, surface temperature 50.

Voltage

380V 50HZ/60HZ 9kw

Heating element

High quality Mosi2 heating element

Temperature accuracy

±1℃

Heating rate

5℃/min

Heating medium

In vacuum, direct thermal radiation heating

Advantage

Low heat absorption, fast heating, energy saving













Instrument model

Xiamen Yudian temperature control instrument

Temperature control

Programmable temperature controller, PID adjustment, (programmable 30 curve;  Fully automatic heating, insulation and cooling)

Upper limit alarm, deviation alarm, automatic stop at the end of the program, without human on duty



Temperature control instrument

Linear current output, flip-flop phase shift trigger reverse parallel bidirectional SCR, precise temperature control accuracy

Thermocouple

B type

Alarm action

1.Overtemperature alarm: when the temperature in the furnace rises to the alarm temperature, the power supply will be cut off automatically and the alarm light will be on.

2.Couple break alarm: open thermocouple, instrument alarm and automatic power off.

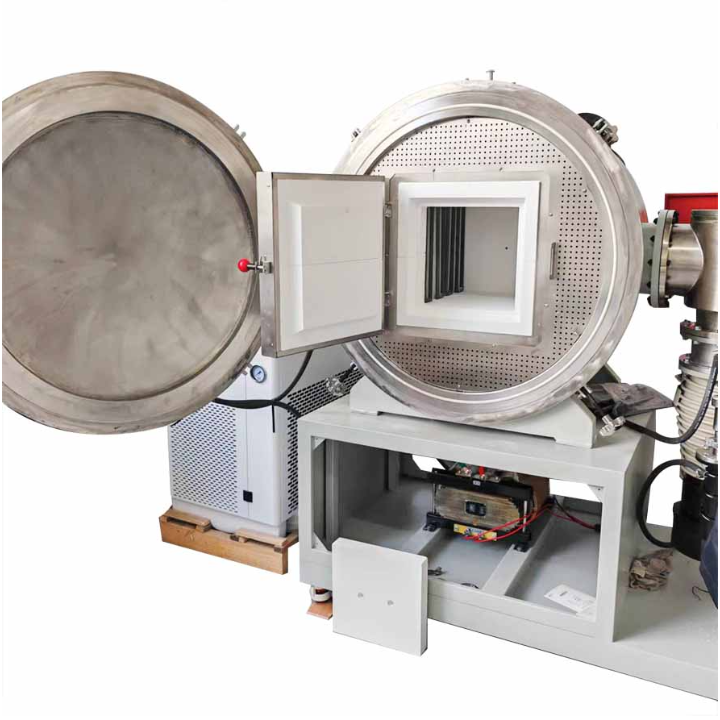

Double layer water-cooled inner stainless steel outer carbon steel vacuum tank, front and rear semicircle head. Built-in silicone ring seal, hand wheel lock.

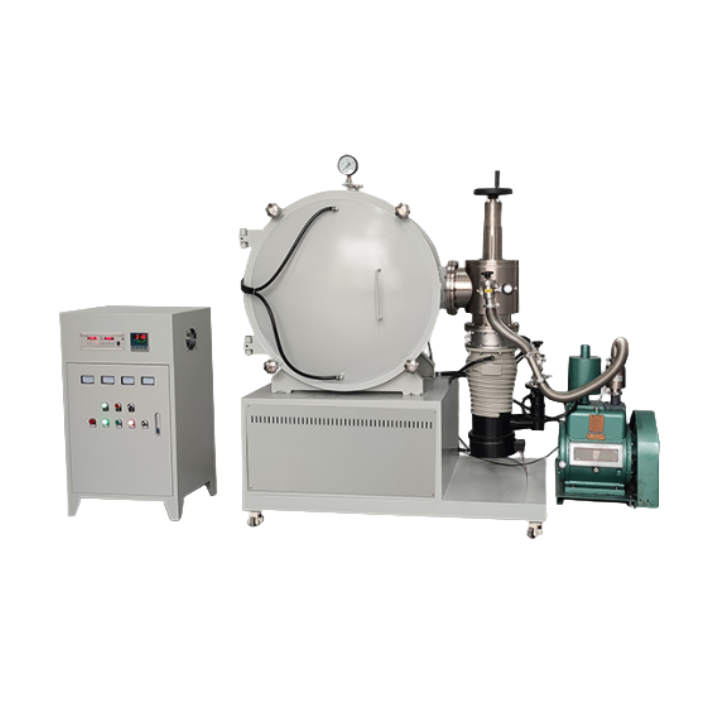

The vacuum unit is composed of front stage pump and diffusion pump. All the machines selected are the best domestic brand Chengdu Nanguang machine.

The early pump is 2X-15 nanguang pulley.

Diffusion pump for 100 caliber, pumping speed 1800L/S, limit vacuum 10-3Pa;

The compound vacuum gauge brand is Chengdu Ruibao, ionization vacuum gauge adopts durable metal gauge, rather than cheap and easy to break glass gauge.

The suction port of the vacuum pump is equipped with an electromagnetic differential pressure valve to prevent the vacuum pump oil suction caused by misoperation or sudden power failure.

Vacuum tank and vacuum pump connected with bellows, manual flapper valve control.

Warranty

One-year warranty period, lifetime maintenance, (excluding related consumables, such as furnace heater, seals, etc.)
