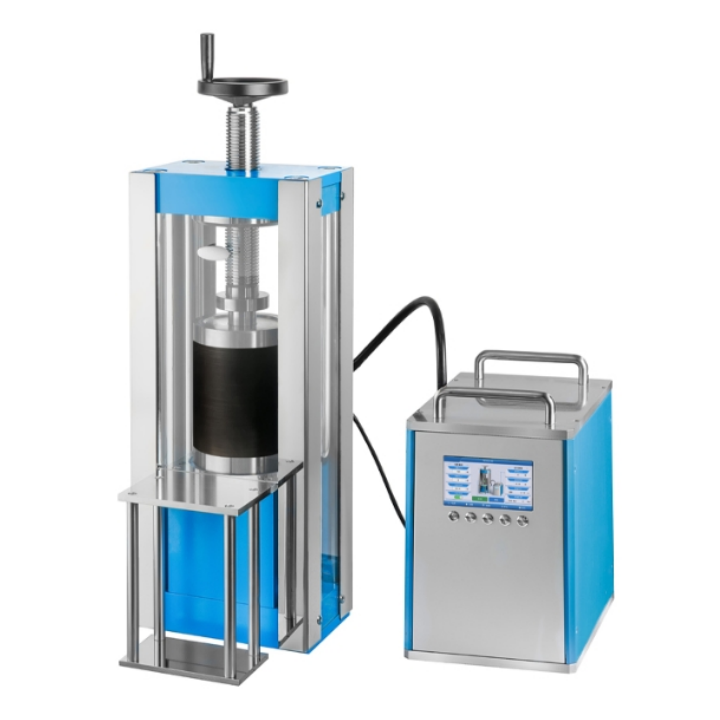

7 Inch LCD Screen 200C 100T Hot Isostatic Tablet Pressing Equipment

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    LITH-PCD-100R
  • Payment:

    L/C D/A D/P T/T Western Union
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

7 Inch LCD Screen 200C 100T Hot Isostatic Tablet Pressing Equipment






Cavity mold diagram



Cavity mold operation diagram




Operation interface (Standard mode)



Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.



Operation interface (Advanced mode)



Start button: It can be pressurized according to a multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

Setting button: Click the Settings button to enter the Settings menu.



Operation interface (Advanced mode)



List/Curve: The current display state can be switched between list and curve.



Setting interface



Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"



Setting interface



Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen



Operation procedure





Technical parameter

Instrument type

PCD-100R

Pressure range

0-100T

Piston diameter

Φ200mm(d)

Pressurization process

Programmed pressure - programmed pressure retention - timed pressure relief

Holding time

1 s to ∞ s

Pressure conversion

The program automatically converts the pressure of the sample

Liquid crystal display

7 inch LCD screen

Heating temperature

Room temperature -200.0℃

Isostatic pressure

300MPa

Isostatic pressure chamber

Φ 60 x150 (MXN)

Cylinder stroke

50mm(T)

Equipment power supply

3000W(220V/110 can be customized)

Equipment weight

680Kg

Equipment size

980x900x1300(LXWXH)

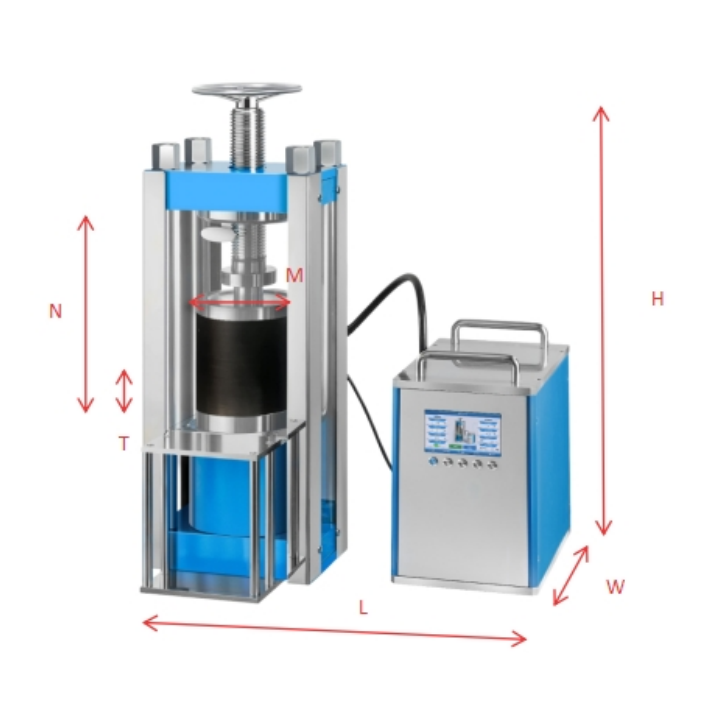

Powder tablet press size diagram
