65T High Temperature Split Hot Isostatic Press with 7 inch LCD Screen

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    LITH-PCD-65R
  • Payment:

    L/C D/A D/P T/T Western Union
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

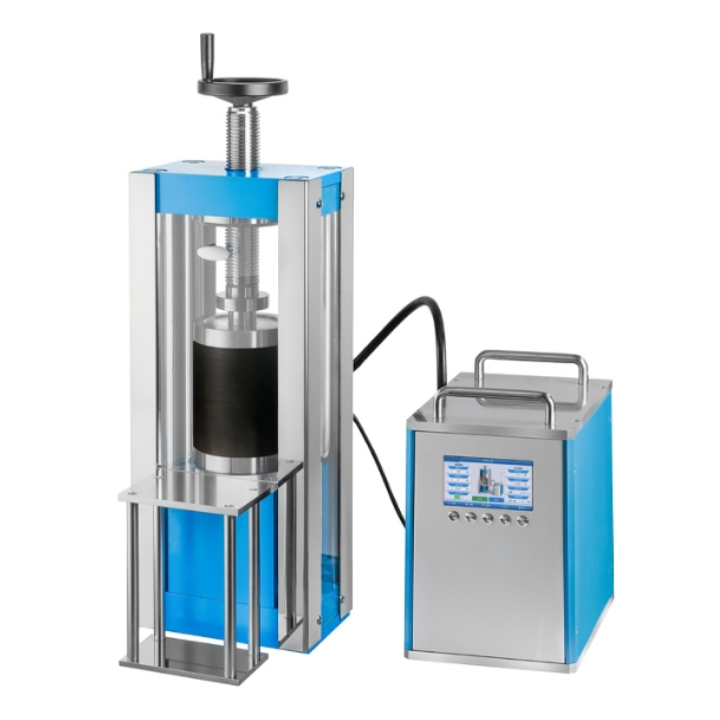

65T High Temperature Split Hot Isostatic Press with 7 inch LCD Screen




Cavity mold diagram



Cavity mold operation diagram



Operation interface (Standard mode)



Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.



Operation interface (Advanced mode)



Start button: It can be pressurized according to a multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

Setting button: Click the Settings button to enter the Settings menu.



Operation interface (Advanced mode)



List/Curve: The current display state can be switched between list and curve.



Setting interface



Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"



Setting interface



Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen



Operation procedure





Technical parameter

Instrument type

PCD-65R

Pressure range

0-65T

Piston diameter

Chrome plated cylinder Φ150mm(d)

Pressurization process

Multi-segment program pressurization can display the spectrum

Holding time

1 s to ∞ s

Pressure conversion

The program automatically converts the pressure of the sample

Liquid crystal display

7 inch LCD screen

Heating temperature

Room temperature -200.0℃

Isostatic pressure

300MPa

Isostatic pressure chamber

Φ 50 x150 (MXN)

Cylinder stroke

50mm(T)

Sample preparation characteristics

Upper board rocker arm structure, more convenient operation

Equipment power supply

2500W(220V/110 can be customized)

Equipment weight

480Kg

Equipment size

680x800x1200(LXWXH)

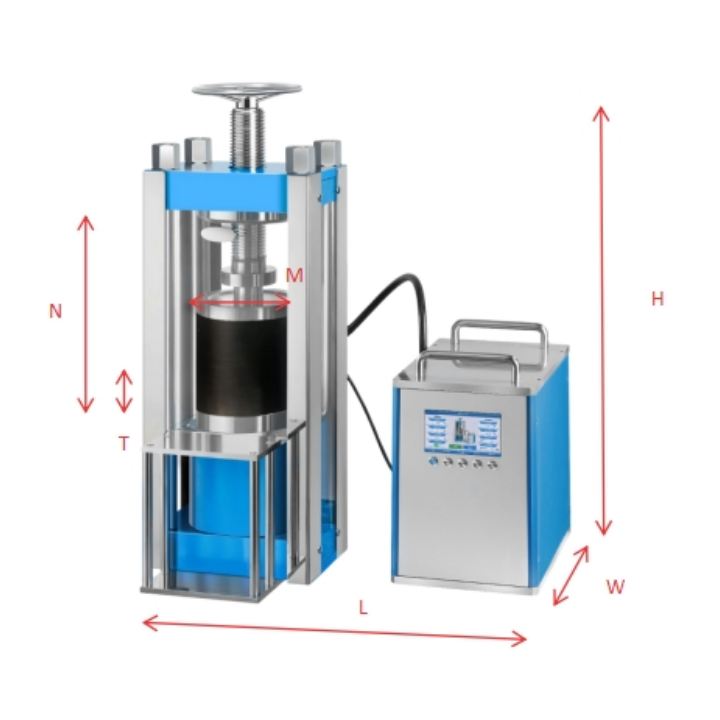

Powder tablet press size diagram
