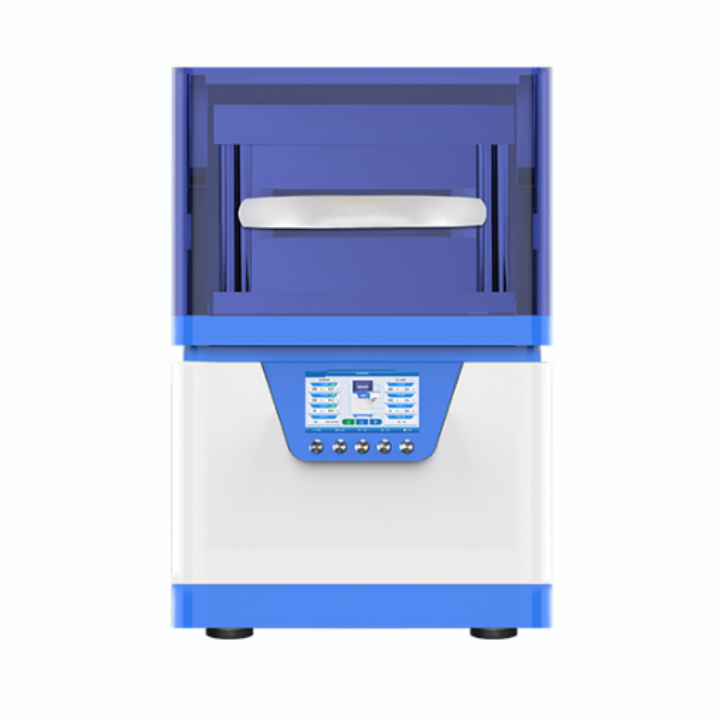

Instrument model

PP-600C-F

Heating Temperature

Heating Power

Pressure Range

0.01-5.0 T

Pressure Accuracy

0.01 T

Display Screen

7- inches Touch Screen

Metal key/button

Silver-plated contacts, with a service life of over 100,000 cycles

Safety Protection

Acrylic protective door (automatic power-off when opened)+emergencystop switch, dual protection for safer operation.

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

Process Control

Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently.

Water cooling for cooling

Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.

Speed Regulation

The boosting speed can be adjusted, and the heating speed can also be regulated.

Remote Control

A computer needs to be selected and equipped. It can perform functions such as data analysis, comparison, modification, and export.

Plate Size

120 x 120 mm (m X n)

Working Space

130 x 55 mm

Power Supply Power

220V / 110V Customizable

Product Dimensions/Weight

350 x 350 x580 mm (L X W X H) /75kg

Package Dimensions/Gross Weight

725 x 620 x 890 mm (L X W X H) / 84kg

Diagram of hydraulic

powder press size
