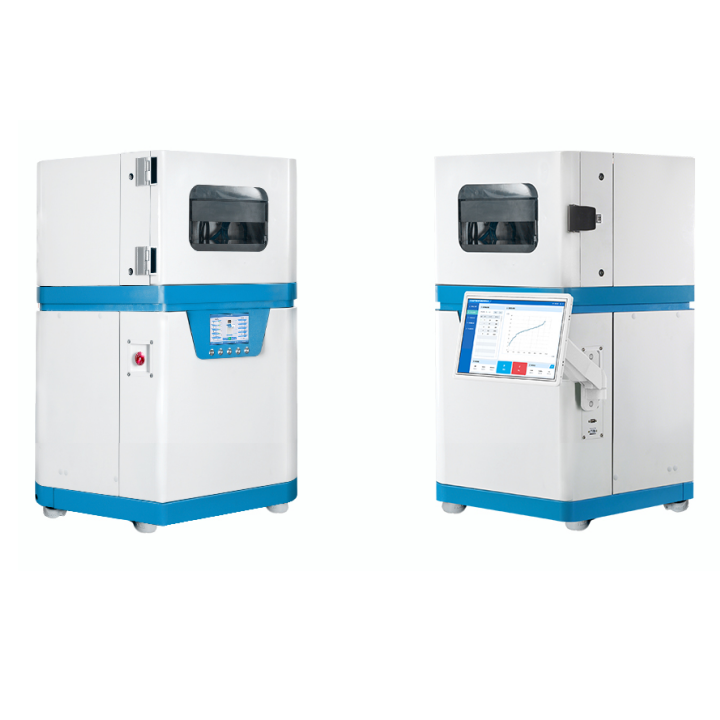

Instrument model

PP-600ZC

Heating Temperature

Heating Power

Pressure Range

0.01-5.0 T

Pressure Accuracy

0.01 T

Display Screen

7- inches Touch Screen

Vacuum Degree

-0.1 Mpa

Metal key/button

Silver-plated contacts, with a service life of over 100,000 cycles

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

Process Control

Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently.

Vacuum Control

Support manual activation ofthe vacuum pump and intake valve. In multi-stageprogramsthe vacuum degree ofthe vacuum chambercan also be automatically controlled.

Water cooling for cooling

Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.

Speed Regulation

The boosting speed can be adjusted, and the heating speed can also be regulated.

Remote Control

A computer needs to be selected and equipped. It can perform functions such as data analysis, comparison, modification, and export.

Plate Size

120 x 120 mm (m X n)

Working Space

130 x 55 mm

Hatch Size

300 x200mm(M X N)

Power Supply Power

220V / 110V Customizable

Product Dimensions/Weight

490 x 230 x340 mm (L X W X H) /14kg

Package Dimensions/Gross Weight

900 x 800 x 1400 mm (L X W X H) / 350kg

Diagram of hydraulic

powder press size
