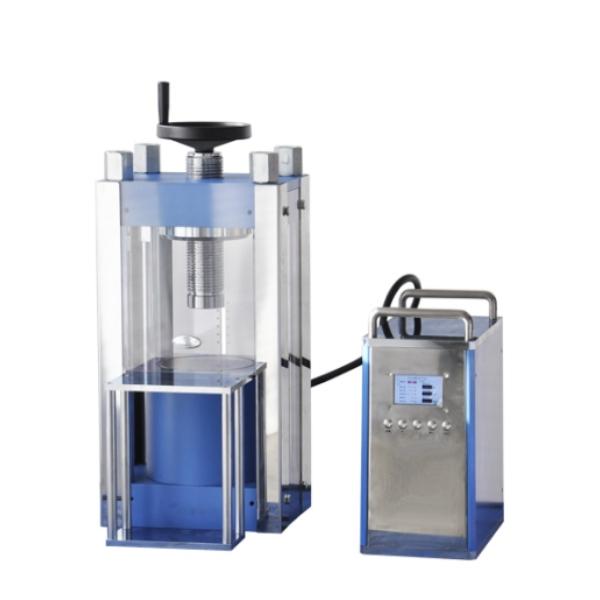

Model

LITH-DYP-100TFZ

Pressure range

0-100T

Piston diameter

Chrome cylinder diameter 200mm(d)

Pressurization process

Program pressurization - program pressure maintenance - timed pressure relief

Compress time

0-999.59 minutes

Pressure conversion

The program automatically converts the pressure on the sample

LCD

4.3 inch LCD screen

Equipment protection

Steel protection with plexiglass door

Cylinder stroke

50mm (T)

Space size

260*250mm(M*N)can be equipped with heightened column

Dimensions

850*500*950mm(L*W*H)

Device power

220V(50Hz/60Hz)

Equipment weight

520kg

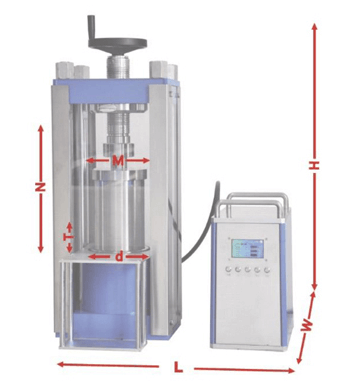

Tablet press size diagram
