Lab Chilled Alloy Hydraulic Three Roller Mill with Stainless Steel Hydraulic Oil Pipe

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    Lith-SYP150-300
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Chilled Alloy Hydraulic Three Roller Mill


with Stainless Steel Hydraulic Oil Pipe






1. Technical parameters:

No.

Model

SYP150-300

1

Roller diameter mm

Φ150

2

Roller working length mm

300

3

Roller speed (frequency conversion speed regulation0-240

Fast roller r/min

0-240

4

Middle roll r/min

103

5

Slow roll r/min

44

6

The height of the discharge port from the ground mm

750

7

Main motor power kw

5.5

8

Hydraulic power kw

0.75

9

Total pressure of hydraulic system Mpa

6.3

10

Net weight Kg

950

11

Dimensions mm

1060*1100*1100

12

Cabinet size mm

1100*600*300

13

Voltage

380V50hz three phase



2. Origin of main electrical and hydraulic accessories:

No.

Accessory name

Origin

1

Roller

Super-grade chilled alloy rolls produced in Zibo, Shandong

2

Roller surface hardness

HS68-72

3

Bearing

American Timken

4

Main motor

Jiangyin University

5

Electrical operation buttons

Tracy

6

Thermal overload protection relay

Tracy

7

AC contactor

Tracy

8

Intermediate relay

Siemens

9

Inverter

Hipmont

10

Oil pump motor

Jiangyin University

11

Hydraulic oil pump

Taiwan Sun Hung

12

Hydraulic Solenoid Valve

Taiwan Victoria

13

Stainless Steel Hydraulic Oil Pipe

Shanghai Tianyang

14

Hydraulic seals

Demark

15

Solenoid water valve

Shanghai constant temperature

16

Cooling water form

closed

17

Temperature control method

Three rollers can feed water independently, with temperature probe

18

Body material

Q235 carbon steel body, exterior paint spraying

19

Baffle material

German wear-resistant Teflon

20

Blade

Imported from Japan (with three random)

21

Hydraulic oil

Great Wall 46# anti-wear hydraulic oil (the oil tank will be filled with hydraulic oil before the whole machine is delivered)

22

Electric wire

Provide the control line from the equipment to the electric cabinet with a length of 5 meters.

23

Other

1. The biggest advantage of this machine is that it adopts frequency conversion speed regulation, and customers can adjust the roller speed according to different conditions in production; especially in the production process, the high-speed operation of the machine ensures the output and fineness; when we clean the machine , it will slow down to protect personal safety;

2. All rollers, pulleys and gears are dynamically and statically balanced to ensure no noise.

3. The equipment is equipped with safety baffle and emergency stop button.

4. A detailed instruction manual and a common toolbox are attached at random.

24

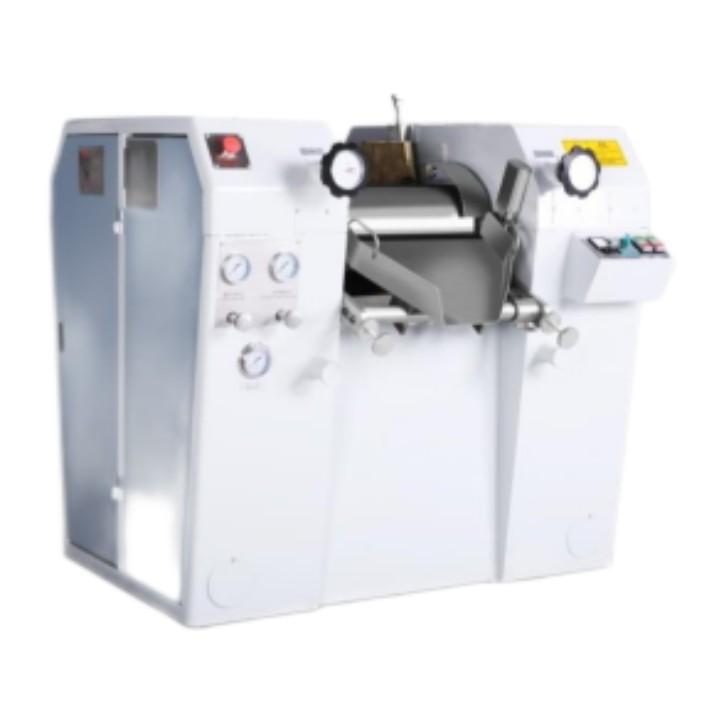

The image is only a reference
