Model

LITH-RYJ-600EG

Pressure range

0-10T

Pressure process

Manual pressure

Piston diameter

Chrome -plated Φ70mm

Temperature control

Room temperature -600℃

Mold heating temperature

Room temperature -500℃

The temperature control accuracy

0.1℃

Insulation method

Imported insulation board

Cooling method

Quick cooling of water cooling 【Optional Water Cooling Machines】

Mold size

180*180mm   200*200mm  (M*N)

Overall size

280*320*520mm (L*W*H)

Power supply

220V/2500W

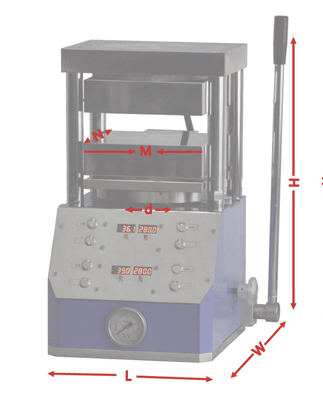

Dialogue of thermal compressor size
