Industrial Stainless Steel Inclined Mixer Machine

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-XMX
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

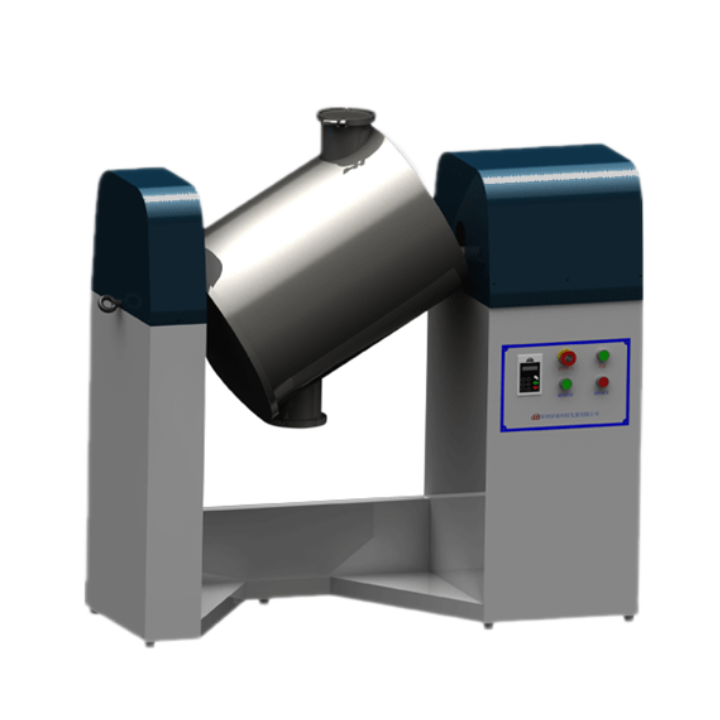

Industrial Stainless Steel Inclined Mixer Machine



Inclined Mixer


Introduction

The mixing barrel is inclined at 30 degrees to the horizontal for smooth running and pollution-free material. Polyurethane balls or plastic balls can be used as grinding media to enable several different powders to be mixed quickly and evenly. At the same time as mixing, the balls can be added for grinding, which gives excellent grinding and mixing results.


Application

This machine is suitable for the mixing of a wide range of materials and is widely used for the mixing of two or more materials in various fields such as electronics (lithium cobaltate), ceramics, chemicals, pharmaceuticals, daily chemicals, organic and inorganic. The mixing drum can be made of polished stainless steel inside and outside or lined with corundum, polyurethane, etc. according to the user's requirements.



Features

The inclined mixing machine adopts a structure in which the centre of the barrel is at an angle to the horizontal surface, resulting in irregular movement of the material during work, thus achieving uniform mixing without blind angle.



Technical parameters

Specification

Working volumeL

Total volume (L)

Loading factor

Mixing power (Kw)

Rotation speed (r/min)

XMX-5

2

5

0.4

0.25

50

XMX-10

4

10

0.4

0.25

45

XMX-20

8

20

0.4

0.37

32

XMX-50

20

50

0.4

0.75

32

XMX-100

40

100

0.4

1.5

30

XMX-200

80

200

0.4

3

24

XMX-300

120

300

0.4

4

20

XMX-500

200

500

0.4

7.5

12
