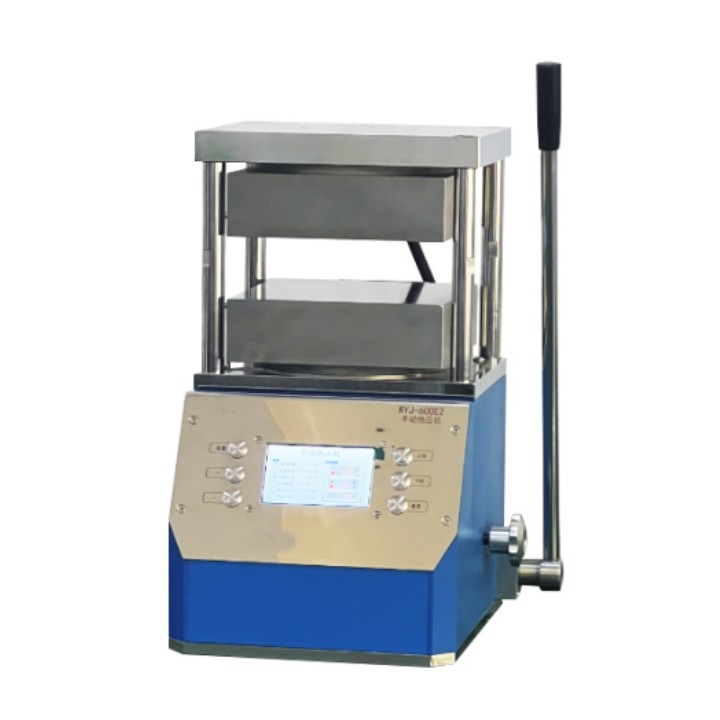

300C 500C Double Plate Integral Manual Heat Press Machine
New RYJ-600E series
This is a compact double plate manual heat press with one-piece structure and fixed upper and lower heating plates for stable and reliable sample making experiments.
Main technical parameters
|
Equipment Model |
RYJ-600E1 |
RYJ-600E2 |
RYJ-600EG1 |
RYJ-600EG2 |
|
Pressure range |
0-10T |
|||
|
Timing insulation |
999min |
|||
|
Piston diameter |
φ65mm Chrome-plated cylinder |
|||
|
Pressure gauge type |
4.3" LCD screen |
|||
|
Pressurization method |
Manual pressurization |
|||
|
Thermostat type |
XNNETS PLC programmable temperature control instrument |
|||
|
Hot press mold type |
Double flat heating and pressurizing - top plate fixing - polished panel |
|||
|
Die heating temperature |
Chamber temp to 300.0℃ |
Chamber temp to 500.0℃ |
||
|
Die cooling method |
Water-cooled rapid cooling |
|||
|
Equipment insulation method |
Imported insulation panels |
Imported heat insulation board + stainless steel water-cooled heat insulation board |
||
|
Hot pressing mold size |
Wide 180*180mm |
Wide 200*200mm |
Wide 180*180mm |
|
|
Equipment power supply |
220V/1800W |
220V/2500W |
||
|
Overall structure |
Integral structure, equipment without sealing connection, reduce oil leakage point |
|||
|
Dimension |
280*320*520mm |
|||
|
Equipment weight |
About 60-80kg |
|||
|
Model Description |
Water cooler selection! When the device is heated to more than 400℃, the water cooler must be enabled |
|||
