24T Double Plate Manual Hot Press with PLC Programmed Temperature Controller

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    RYJ-600C
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

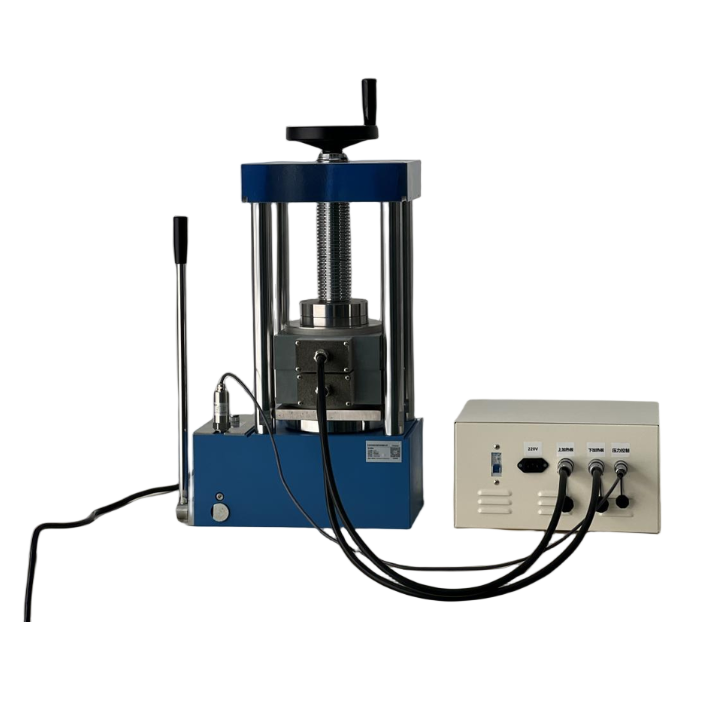

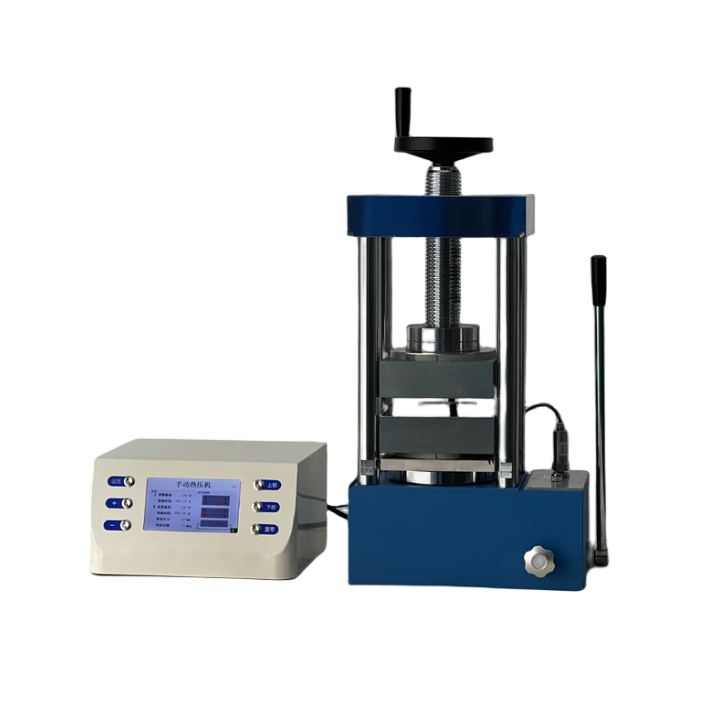

24T Double Plate Manual Hot Press with PLC Programmed Temperature Controller




Hot Press

The new RYJ-600C series

RYJ-600C series manual hot press adopts double plate (polishing surface) design, equipped with two temperature controller, can separately control the temperature of two plates to heat, the thickness of the film can reach 50um-500um, suitable for polymer materials, plastic film and rubber products and other materials of experimental research, can also be used as a small plate vulcanization instrument.


Main technical parameters

Product Name

RYJ-600C

RYJ-600CG

Pressure range

0-24T0-34MPa

Pressure conversion

1t-1.41Mpa

Piston diameter

ɸ95mm chrome plating cylinder

Maximum piston stroke

30mm

Type of pressure gauge

Pointer; Pressure, pressure double scale display; the range 0 to 40 mpa; accuracy of 1 Mpa

Pressure mode

Manual pressure

Temperature controller type

PLC programmed temperature controller (double temperature controller)

Temperature control range

RT-600.0℃/0.1℃

Type of hot pressing die

Double die heating up and down (polished surface)

Heating die size

100*100mm



Temperature of hot pressing die



RT-300

RT-500

Heating die cooling method

Cooling by natural or water cooler





Equipment insulation Mode







Imported heat shield





Imported heat insulation board + stainless steel water cooling cycle heat insulation board

Power

220V/600W

220V/1000W

Overall structure

Split structure

Size of the machine

245*175*500mm(The weight of the water cooler is not included)

Weight

About 50-60kg

Model specification

Water cooling machine (optional)

Digital pressure gauge (optional), accuracy of 0.01Mpa, more accurate pressure control
