1L 2L 4L 10L Planetary Stainless Steel Ball Mill Jar
Introduction

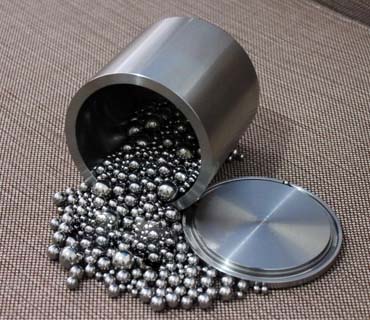

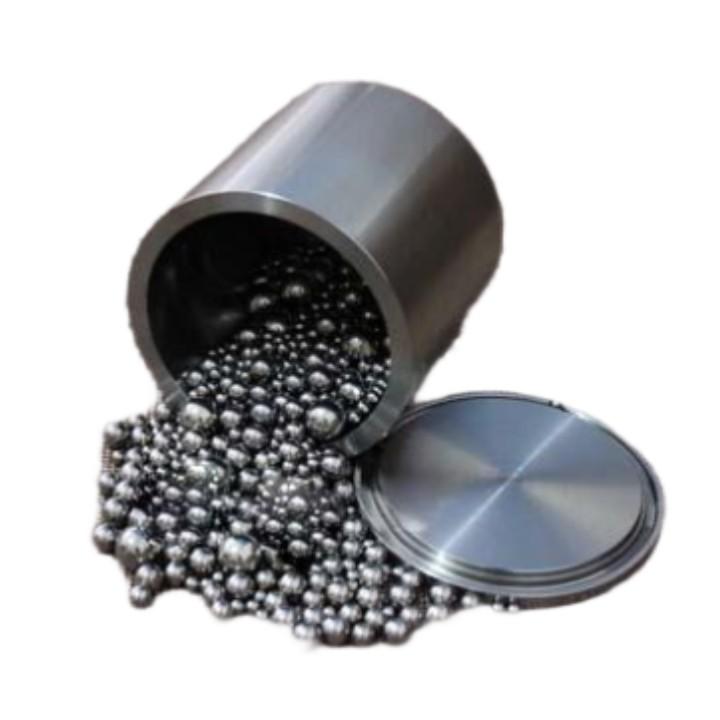

Stainless steel ball mill jars are widely used grinding jars, which are commonly used for grinding metal materials and non-metal materials. Different models of vacuum tanks can also be customized according to customer requirements.
Features
1 Scientific design, fully compliant with the diameter ratio of ball mill tank.
2 Excellent production and processing technology, the surface finish is super high.
3 Use standard domestic 304, 316L and other stainless steel, strong acid and alkaline resistance
4 Good sealing performance, no leakage at all
5 We can provide you with many programs
Product Parameters
|
Model Specifications |
Outer Diameter(mm) |
Inner Diameter(mm) |
Height (mm) |
|
|
thick wall thin-wall |
thick wall thin-wall |
thick wall thin-wall |
|
50ML |
48 / |
38 / |
54 / |
|
100ML |
62 / |
48 / |
72 / |
|
250ML |
87 / |
71 / |
83 / |
|
500ML |
106 88 |
90 81 |
108 110 |
|
1L |
131 107 |
115 100 |
118 140 |
|
1.5L |
131 132 |
115 125 |
158 140 |
|
2L |
157 132 |
141 125 |
148 181 |
|
2.5L |
157 158 |
141 151 |
183 156 |
|
3L |
157 158 |
141 151 |
213 186 |
|
4L |
178 179 |
162 170 |
213 188 |
|
5L |
192 / |
182 / |
209 / |
|
10L |
243 / |
232 / |
259 |
|
15L |
271 / |
261 / |
295 |
|
20L |
320 / |
310 / |
284 |
|
25L |
320 |
310 |
347 |
IV.Pictures
