GSL-1200R-MWPE is an MPCVD (microwave-assisted CVD) rotary furnace. It integrates the 2.45GHz microwave generator and 2" rotary processing tube ( 0-5 rpm) with vacuum-sealed flanged to provide stable plasma from 800oC to 1200oC under ~4.5 torr vacuum. It is designed to fast calcine powder and form the core-shell structure for powder in battery research.
SPECIFICATIONS:
|
Power
|
-
Total 2000W
-
208-240VAC, Single phase, 50/60Hz
|
Microwave
|
-
Frequency: 2.45 GHz ±25 MHz
-
Power Output: 1400W
-
Microwave leaking: ≤ 3 mW/cm² at 1 meter away.
-
One digital power controller is built in to adjust output power from 10 - 100%
|
Heating Module and
Processing Tube
|
-

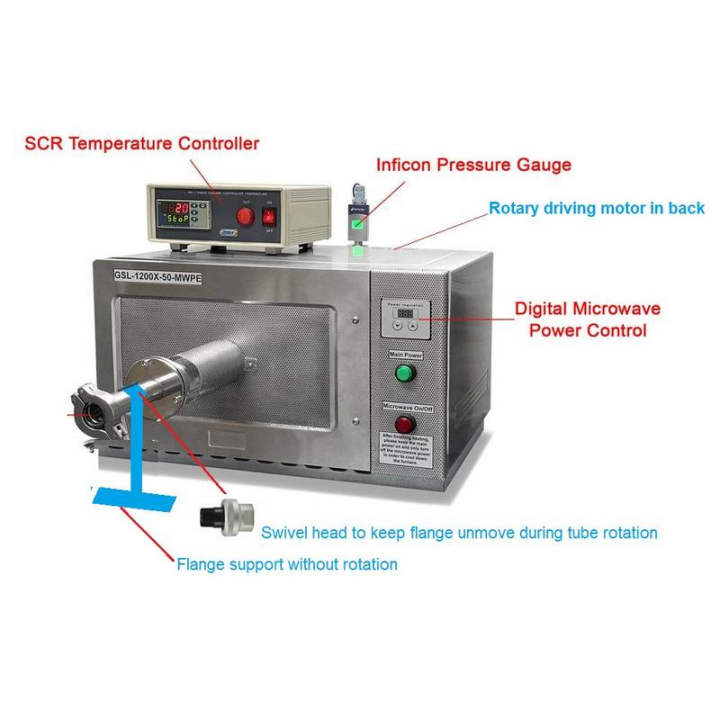

Ni-Cr-Al wire heating coin with 80 mm ID is installed inside a fibrous alumina module (Pic. 1)
-
The heating coil is placed inside the microwave chamber
-

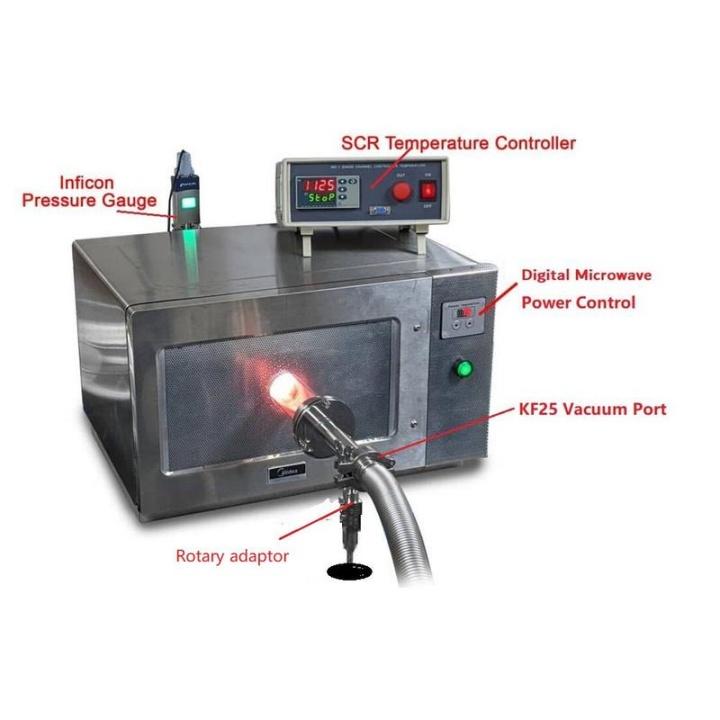

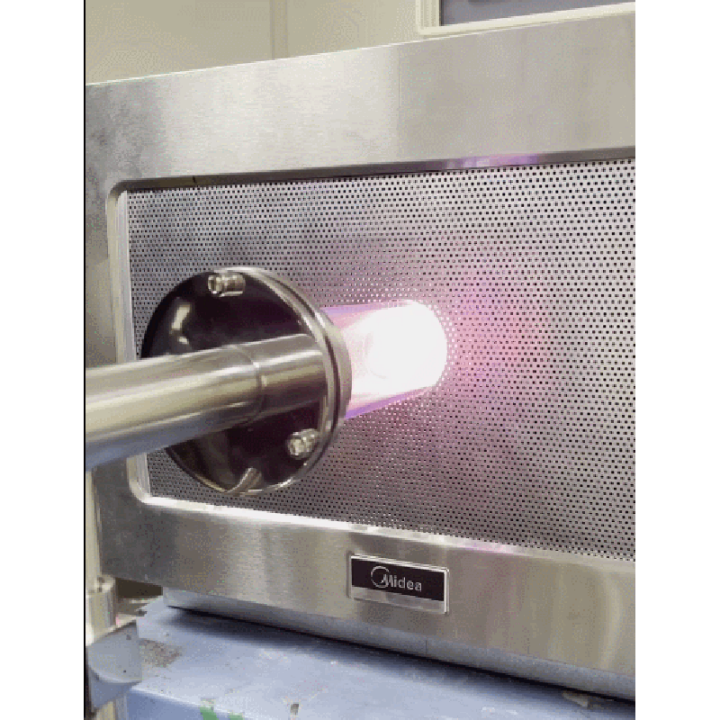

2" Fused quartz processing tube with a mixing blade in the center (Pic. 2 and Pic.3)
-
|
Flanges & Vacuum
|
-
One pair of vacuum flange is included to seal the quartz tube
-
KF25 vacuum port and 1/4 gas inlet and outlet with needle valves are built-in the flange ( Pic. 1)
-
One digital vacuum gauge is included for vacuum control ( Pic. 2)
-
Max. Vacuum level: 10-2 torr by dry pump and 10-5 torr by turbopump.
-
The pump is not included. Please click Pic. 3 to order separately. For CVD application, suggest choosing a dry pump.
|
Inline Swivel &
Rotary Speed
|
-
Two Inline Swivel Gas Fittings are included and connected to flanges, which allows gas pipe in place when the tube rotating
-
Rotation speed: Tube rotation is driven by a DC motor with a speed range of 1- 5 rpm variable
-
A 1/4" gas tube is required to connect the Inline Swivel Gas Fittings to the gas tank
-
Click the picture left to see detailed specs
|
|
Working Temperature
|
-
Max. 1200ºC < 30 minutes with heating module assisted
-
Min. 800ºC with heating module assisted
-
≤1100ºC continuous with heating module assisted and Plasma
-
Heating rate: 1 ~20°C / min programmable
-
~750ºC heating by microwave only without temperature control
|
|
Temperature Controller
|
-
30 segments programmable for heating rate, dwell temperature and time, and cooling rate
-
SCR temperature control
-
Over-temperature and thermal couple broken protection
-
Control accuracy +/-1.0 ºC
-
K-type thermal couple inserted through the flange
|
|
Compliance
|
-
CE Certified
-
NRTL or CSA certification is available upon request
|
