Furnace size

Depth 300 * width 200 * height 120mm

Maximum temperature

1200℃

Common service temperature

0-1100℃

Power

5kw

Heating element

Resistance wire

Thermocouple

Type K

Temperature control accuracy

±1℃

Working voltage

220V 50hz/60hz

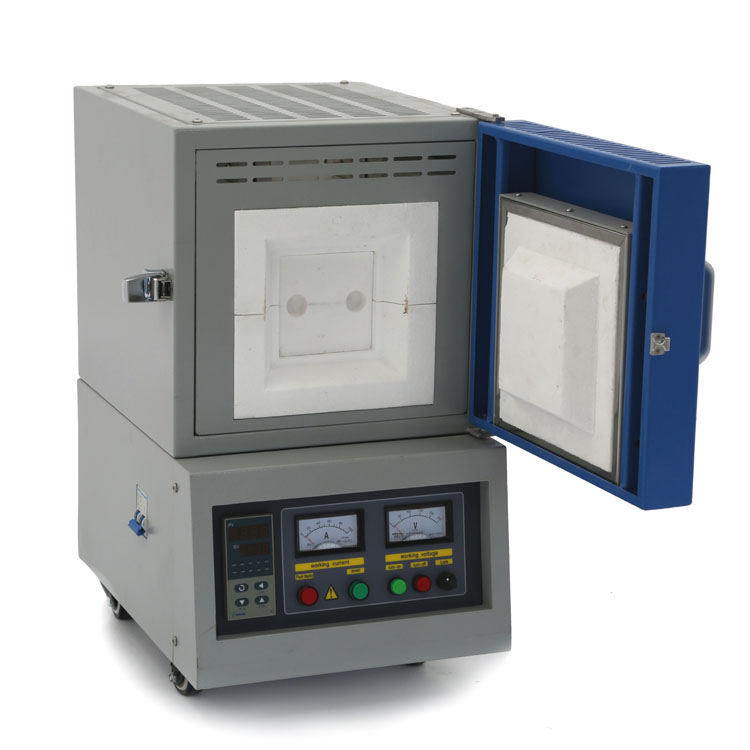

Furnace structure

Integrated and compact design, step splicing structure, in line with the laws of mechanics, uniform stress during heating, and heat energy is not easy to dissipate.

Furnace material

High quality high alumina polycrystalline ceramic fiber (alumina > 92%), resistant to rapid cooling and heating, and excellent thermal insulation effect.

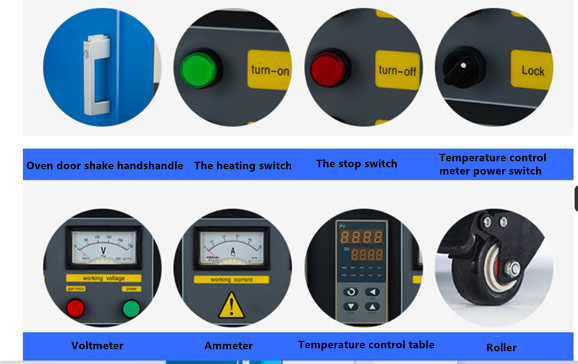

Temperature control

The intelligent temperature control instrument of the most advanced Yudian instrument manufacturer in China is adopted. The shell is set with 30 sections, intelligent programmable PID self-tuning, one key operation, automatic temperature rise and automatic temperature drop. There is no need to keep the value, and the operation is simple and convenient. Temperature control accuracy ± 1 ℃.

Heating rate

0-20 ℃ / min can be set arbitrarily, and it is recommended that ≤ 10 ℃ / min

Safeguard

It has the protection functions of temperature deviation protection, overtemperature protection, couple breaking protection, overcurrent protection, overpressure protection, etc

Defects liability period

The furnace body is guaranteed for one year (except the heating body) and for life

Standard accessories

1 crucible pliers, 1 pair of high temperature resistant gloves, 1 copy of operation manual, certificate of conformity and warranty card.

Packing

It is packed in wooden box with foam filling and plastic film covering the furnace body.
