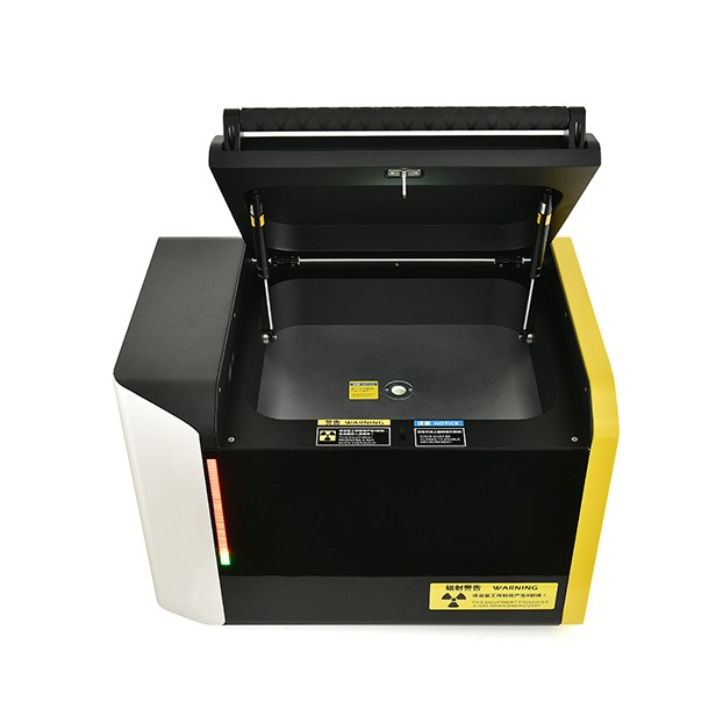

Industrial Copper Brass Bronze Alloy Benchtop Fluorescence Analyzer
ScopeX Copper Alloy Analyzer is an X-ray fluorescence analyzer designed for rapid analysis and identification of copper alloys. It has the advantages of high accuracy, wide range of analyzable elements, simple and fast testing, and can be used for rapid analysis of anode copper, brass, bronze, gun copper and other copper alloys. It is widely used in iron and steel smelting, non-ferrous metals, aerospace, weapons manufacturing, submarines and other industries.
Advantage
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
A variety of collimator, filter automatic switch
5mm, 3mm, 1mm, 0.5mm four kinds of collimators, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate collimator and filter or filter can improve the detection accuracy and sensitivity.
User-defined
The file can be in EXCEL, PDF and other formats. Users can customize the test report, including company logo, spectral spectrum and other sample information.
Safety
Fully enclosed metal chassis and leakage protection switch, more scientific design, hardware and software coordination, mechanical and electrical linkage, radiation safety in line with international standard.
Application scenario
Recovery and sorting of waste copper alloy
Quality control and assurance of copper alloy
Identification of copper alloy raw material/grades
Product parameter
Range of element
Na—U
Sample room size
365×300×78mm（L×W×H）
Maximum sample weight
0-2.5KG
Cover open
Automatic
Mainframe size
570×400×400mm
Weight
47KG
X-ray tube
High power side window X-ray tube，50W, pipe pressure pipe flow can be adjusted freely, W/Ag/Rh target (optional)
Voltage
Up to 50kV
Current
Maximum 1mA
Cooling method
Air cooling
Type
Si-pin/SDD(Optional)
Test environment
Air mode, Vacuum mode(optional), Helium mode (optional)
Sample Observation
5 megapixel HD industrial camera
CPU
is I3-7100 with the same main frequency or above
RAM
DDR4 4 GB memory or above
ROM
1TB HDD or 256GB SSD or above
OS
Windows 10
Temperature conditions
10°C~35°C
Relative humidity
40%-70% No condensation
Power supply
220VAC
Rated power
100W
