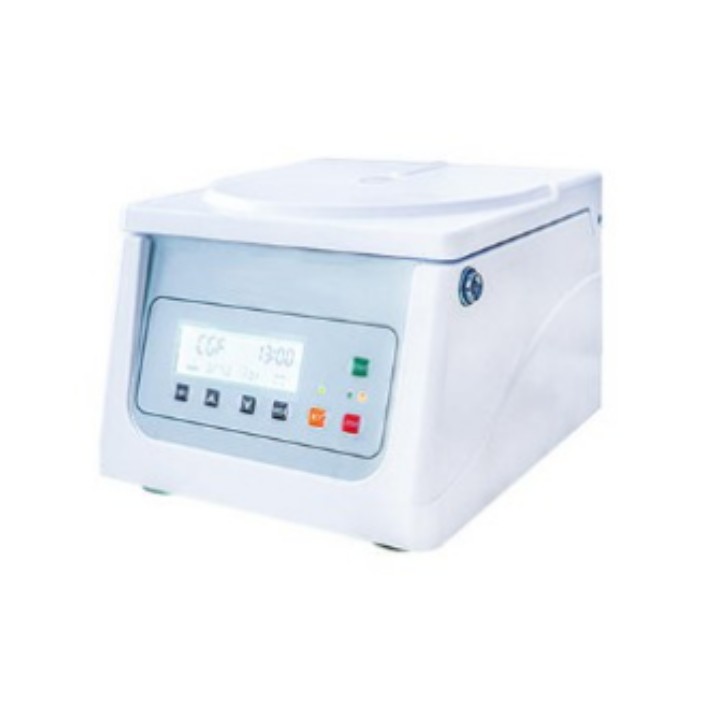

CGF Plastic Explosionproof Table Top Low Speed Centrifuge for The Separation of Blood Samples
Introduction：
BKC-TL4CII centrifuge is a table top low speed centrifuge with low speed. It is suitable for the separation of blood samples in clinical laboratory, laboratory, beauty salon, dental hospital, etc.
Features:
* With dedicated CGF program.
* Small size, safe and reliable, easy to use.
* The body is made of high quality plastic material, explosion-proof protection.
* 10 kinds of lifting speed to choose from, the lifting speed is fast.
* Brushless DC motor, stable operation, small vibration, low noise.
* Push-button programming design, real-time display of operating parameters, more intuitive operation.
* Can set the centrifugal speed, time, speed up and down gear, and check the centrifugal force at any time.
* Ultra-low noise, microcomputer control, intelligent interface, fault display, door cover, overspeed and other automatic protection functions.
Technical Parameter:
|
Model |
BKC-TL4CII |
|
Max.Speed |
4000rpm |
|
Max.RCF |
1880×g |
|
Max.Capacity |
8*20ml |
|
Speed Precision |
±20rpm |
|
Time Range |
1s~999min |
|
Power Supply |
AC110V/220V 50/60Hz |
|
Consumption |
65W |
|
Noise |
≤55dB(A) |
|
External Size(L*W*H) |
370*270*210mm |
|
Package Size(L*W*H) |
370*310*250mm |
|
Net/Gross Weight |
7.5kg/8.5kg |

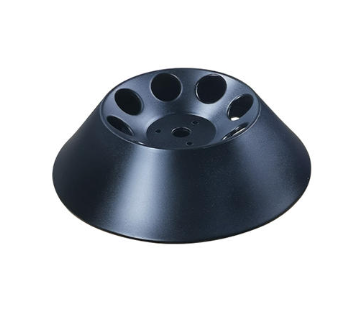

Rotor:
|
No. |
Rotor |
Capacity |
Max. Speed(rpm) |
Max.RCF(×g) |
|
No.1 |
Angle Rotor |
8*20ml |
4000 |
1880 |
|
No.2 |
8*15ml (Suitable for 5/7/10ml vacuum tube) |
4000 |
1840 |
|
|
No.3 |
12*15ml (Suitable for 5/7/10ml vacuum tube) |
4000 |
1790 |
Program Selection
|
Program |
CGF |
A-PRF |
I-PRF |
PGRF |
|||
|
Speed(rpm) |
2600 |
2300 |
2600 |
2850 |
2450 |
2850 |
3100 |
|
Time(min) |
2 |
4 |
4 |
3 |
4 |
4 |
3 |
