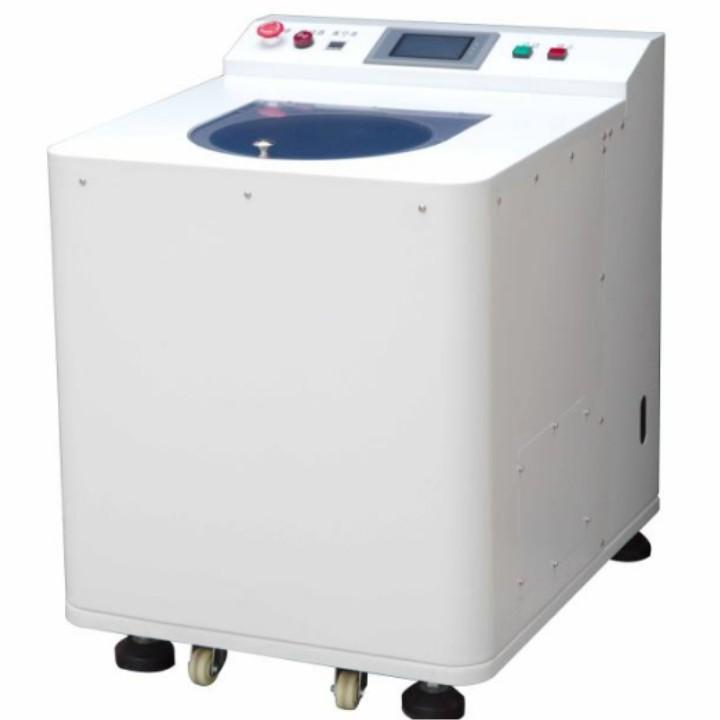

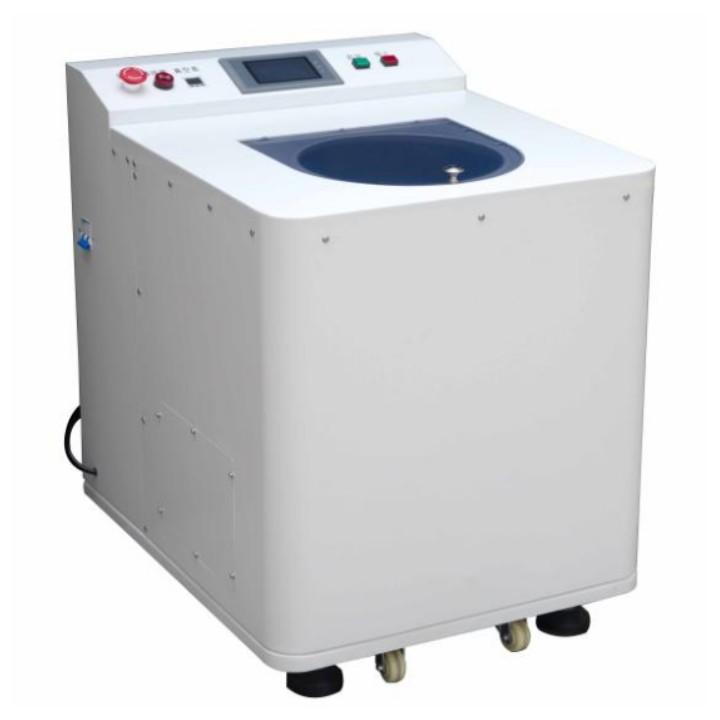

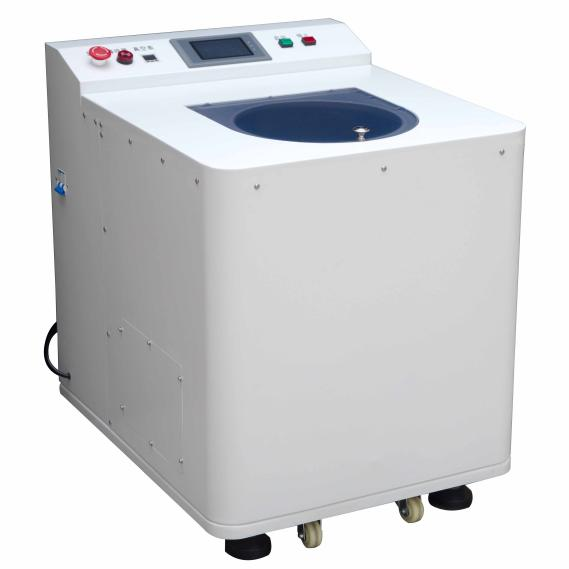

1500ML Double Cup Vacuum Defoaming Stirring Mixer Machine with Rotary Seal

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-ITT-1500S
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

1500ML Double Cup Vacuum Defoaming Stirring Mixer Machine with Rotary Seal




Stirring Defoaming Mixer



Parameter

Container capacity

1500ml*2 cups 70CC*2 sticks

Optimum capacity of agitator

50-1000ml*2 cup

Operation method

Human-computer interface + button start.

Revolution and rotation speed

Revolution 100-2000RPM, rotation and revolution ratio 0.9

Vacuum gauge

SMC or Panasonic (Panasonic) vacuum gauge objective and true display vacuum degree.

Vacuum pump

German technology Small Diamon grade vacuum pump, built-in forced lubricating oil pump, full lubrication, reliable performance, low noise, with our company's unique 4-stage filtration, to meet the requirements of clean room.

Spindle

S136 mirror surface die steel sealing position quenching HRC58~60°, mirror surface grinding at the sealing ring position

Sealing ring

DuPont's polymer graphene sealing ring is super wear-resistant and maintains long-term high vacuum

Arm

The United States imported aviation magnesium aluminum 7075, the overall machining center distance is ±0.02, and the size is stable for a long time.Modular structure, high interchangeability, very convenient maintenance.

Transmission

Adopt spiral bevel gear transmission, stable transmission, low noise and long service life

Stored program

5 stored programs (5 steps can be set for each program)

Protect

Door cover, fault, overload

Power, power, voltage

Single phase;,≦1.5 KW; 220V

After sales

The whole machine is guaranteed for one year and lifetime maintenance!

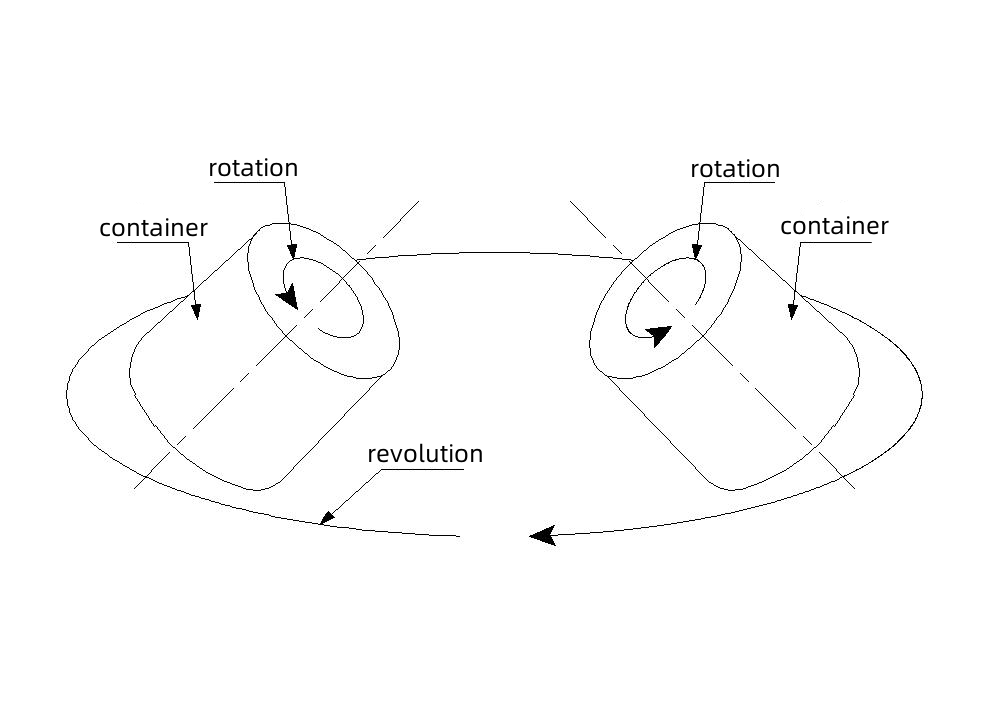

Diagram of the working principle of non-contact stirring:



The arrow on the outer ring is the running direction of the equipment, the material cup is placed at an angle of 45 degrees in the cup holder, and the arrow on the small circle is the rotating direction of the material cup. The slurry in the material cup is mixed by the centrifugal gravity generated by two high-speed rotations of different sizes and directions.

Our stirring method: no stirring rod, only need to change the container when stirring different materials. Easy to clean, just clean the container. Some customers use disposable containers directly. We provide customers with fixtures for disposable cups within the allowable range of size.

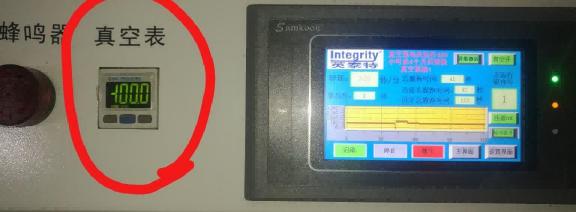

SMC vacuum gauge shows true vacuum



Spindle: Adopt Swiss ASSAB S136 mirror die steel, after multiple heat treatment, the overall hardness reaches HRC62 degrees. The shaft is ground as a whole, with a full runout of no more than 1 wire. The sealing surface is then mirror-polished to achieve a mirror-like effect with a surface roughness of 0.02um. The friction coefficient is extremely low, and the self-super-wear-resisting wear of the sealing ring is very small, achieving high sealing performance with a long life. This is one of the magic weapons for many of our customers to keep the negative pressure above -98Kpa after using it for several years.



Sealing ring: The super wear-resistant sealing ring of Bayer company in Germany is adopted, and the wear resistance capacity can reach the line speed of 40M/S. The line speed of our equipment is only 4M/S at 2000 rpm. The pressure can withstand 20KG/c. This is the second magic weapon for many of our customers to maintain negative pressure above -98Kpa after using it for several years.



Vacuum pump: German technology Small Diamon grade vacuum pump, built-in forced lubricating oil pump, sufficient lubrication, reliable performance, low noise, with our company's unique 4-stage filtration, to meet the requirements of clean room.



Gear: It adopts the structure of automobile spiral bevel gear, which has stable operation, low noise and long service life.



Swivel arm: It adopts the whole swivel arm, which is all made of magnesium-aluminum 7075 imported from the United States, which ensures the accuracy and later stability of the product, and the center error is not greater than ±0.02. High interchangeability, the same type of machine arm can be interchanged freely, easy maintenance.



Vacuum stirring and defoaming machine: high vacuum degree, long life (the vacuum degree of the machine that has been maintained and maintained on time will not be less than 5% in 10 years, the vacuum degree will be maintained below -95Kpa, the more negative the vacuum degree, the higher the vacuum degree), Easy maintenance: The overall material processing of the rotating arm is highly interchangeable, and it is easy for customers to replace parts by themselves, or they can send them back to our company for replacement parts. After replacing the parts, the effect is like a new machine.



Part Name

Brand

Touch screen

SamKoon

Programmable Logic Controller (PLC)

OMRON (OMRON)

motor driver

Mitsubishi (Mitsubishi)

Relay

IDEC (Izumi Electric)

Vacuum gauge

SMC or Panasonic (Panasonic)

Vacuum solenoid valve

SMC

Switching power supply

MW (Mean Well)







Vacuum pump

AKS (AKS) two-stage pump SD-240 (>4L/sec,>240L/min, 14~16M2/hour); absolute limit pressure (partial pressure 5*10 -2Pa and 0.05Pa); absolute limit Pressure (full pressure 4*10 -1Pa and 0.4Pa); machine digital display relative value vacuum degree maximum -100.2KPa;

Spiral bevel gear, helical gear

Customized MC901 or oily nylon

Arm

7075 Overall processing of aluminum plate

Mixing cup

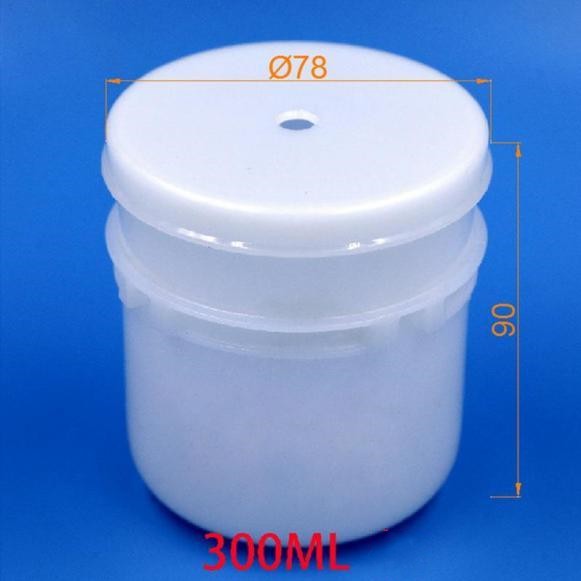

1500ML 900ML 300ML

Axis of rotation

Yishengbai S136 mirror die steel

Rotary seal

Bayer PTFE graphite sealing ring

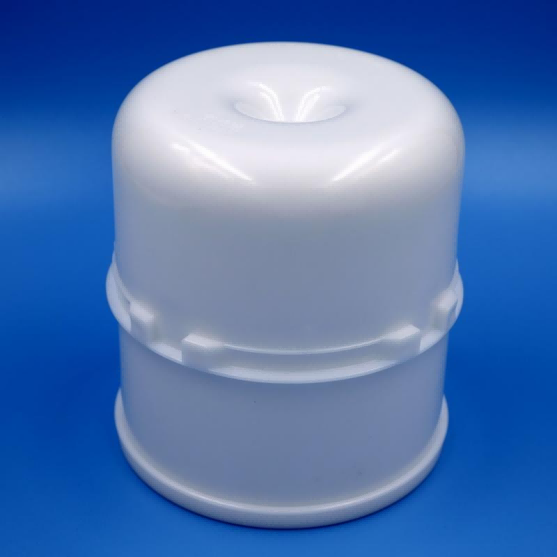

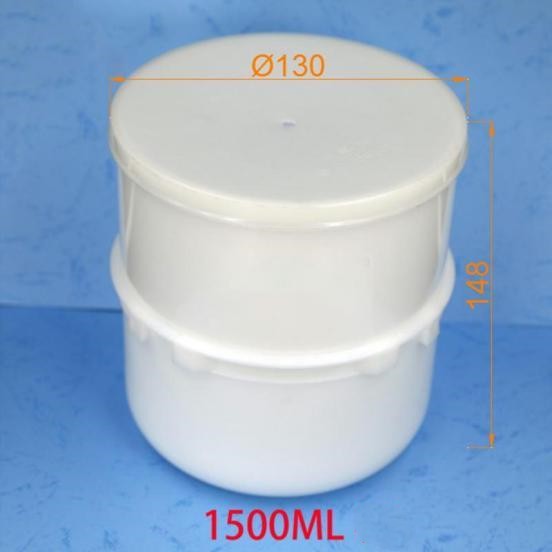

Standard 1500ML blender jar

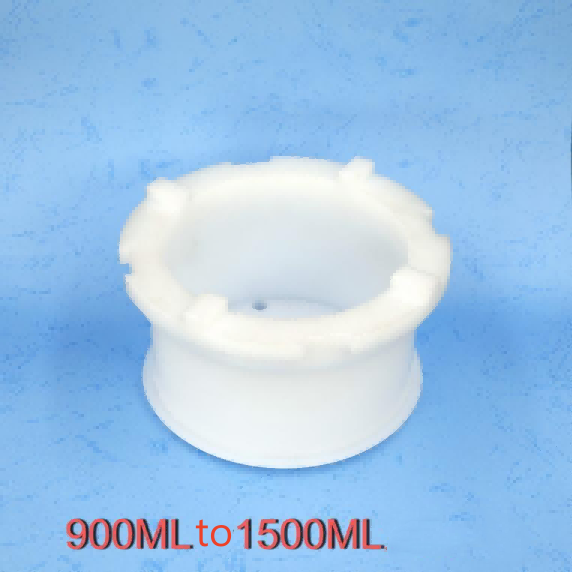

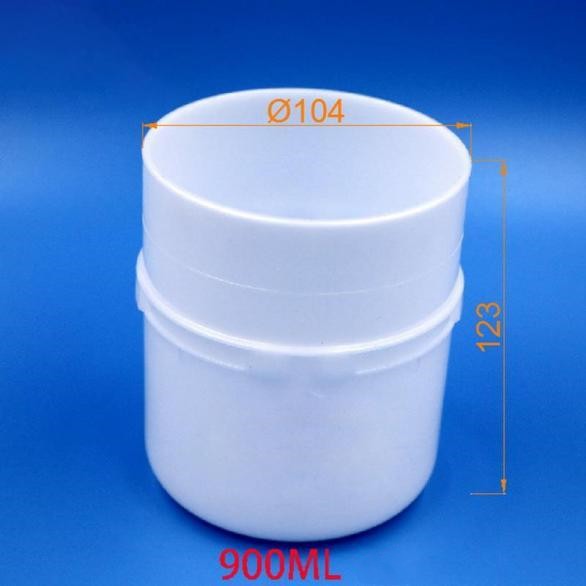

1500ML to 900ML transition sleeve

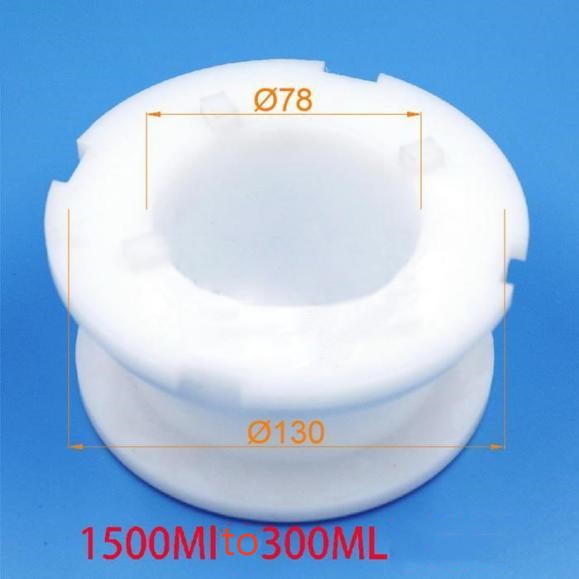

1500ML to 300ML transition sleeve




Optional:

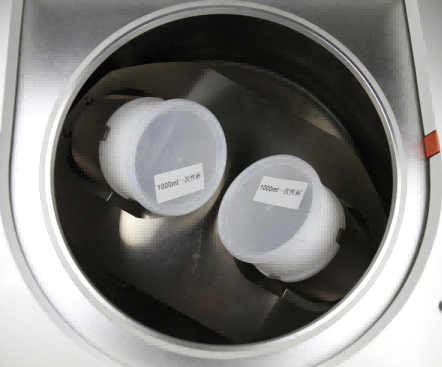

1000ML Disposable Cup Fixture





Optional:

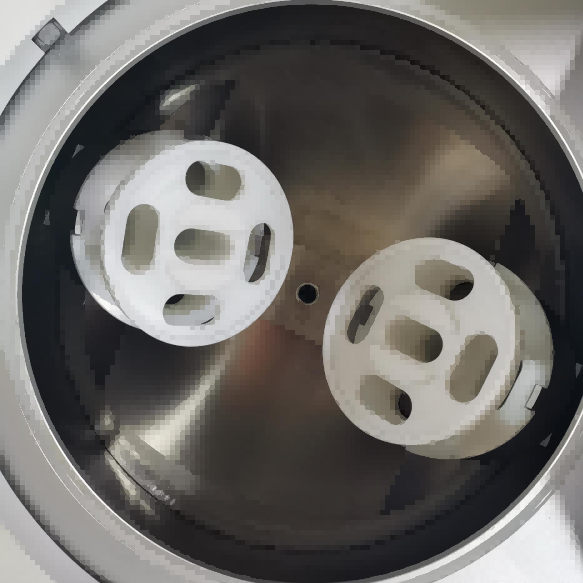

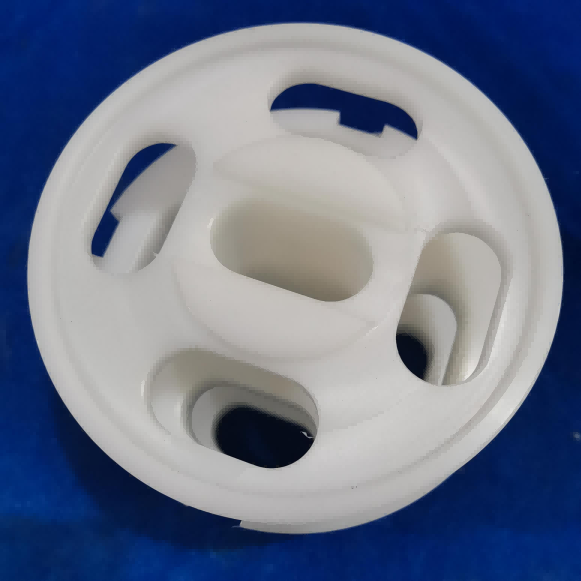

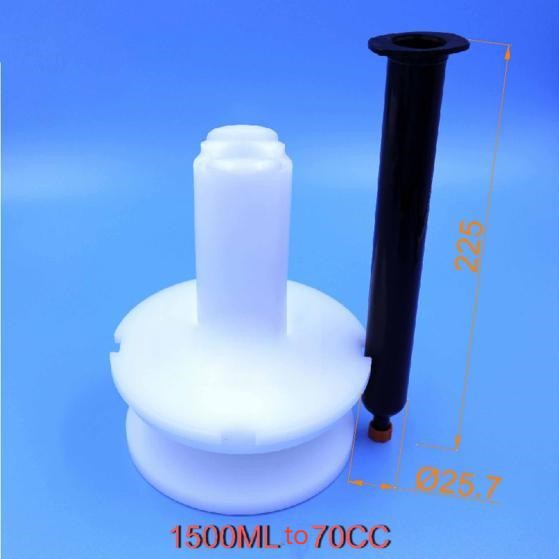

1500ML to 70CC, 55CC, 50CC, 30CC syringe, 10CC plus transition sleeve





50ML1:1 Two-Component Fixture
