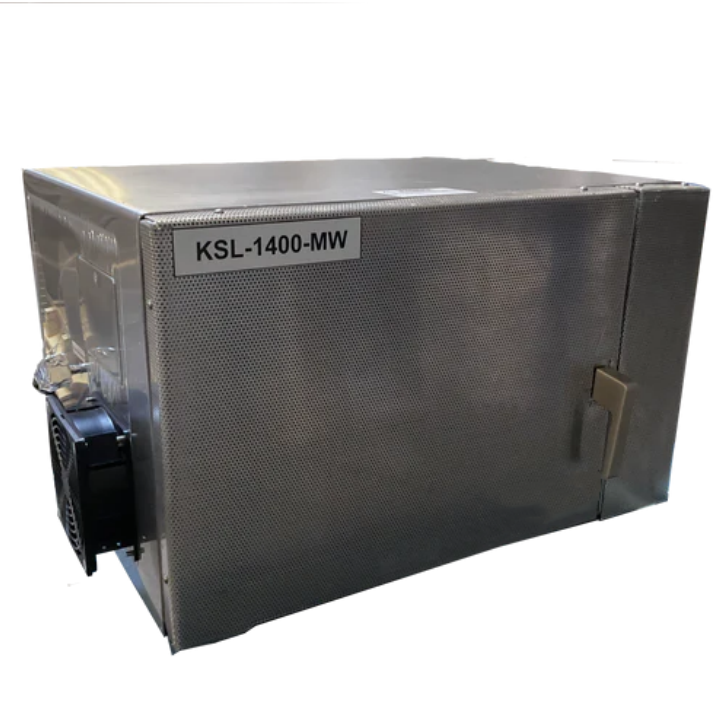

• Stainless steel casing design for shielding microwave radiation
• Rapid heating up > 60 ºC/minute speed  ( 100ºC/minute Max)
• SiC foam as heating elements
• Precision temperature control with 30 segments programmable
• Vacuum casting thermal insulation material for max. energy saving.
• The furnaces are selectable at 1100ºC or 1400ºC with different output power

• Frequency: 2.45 GHz ±25 MHz
• Output: 700W, 1000W and 1800W selectable from product bar
• Microwave leaking: ≤1 mW/cm²

Power

(2 Options)

Heating Elements
& Thermal Insulation

• SiC foam is employed as a heating element, which is a microwave susceptor
• One Al2O3 crucible is included, which is also a microwave susceptor. To be inserted inside the SiC disk
• SiC Graphite crucible is also available, please click the picture below to order
• The SiC heater is placed inside a fibrous alumina casing as the thermal insulation layer
• There are optional models of Microwave Heater to be purchased for various need.



Heating Rate

• Heating rate: 0 ~60°C / min programmable
• Heating time: 100 minutes Max.
• The microwave furnace is good for rapid heating at a short time of less than 10 minutes

• CE Certified
• NRTL certification is available upon request at an extra cost
